CatCam HDMI Displayer

LCD Display for Microscope HDMI Camera

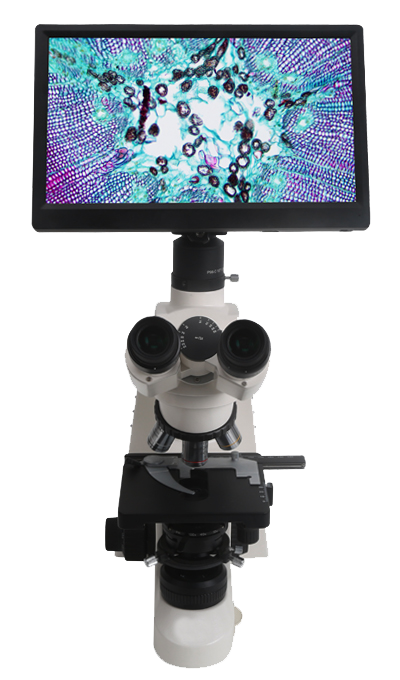

CatCam HDMI Displayer can be used for high definition display. It adopts Panasonic IPS LCD panel (Super TFT) to guarantee the wide view angle and high contrast. Together with CatCam E-series HDMI camera, this displayer makes the imaging & display solution simple, flexible and intuitive. It's outstanding performance helps CatCam E-series HDMI camera reach fast frame rate with true color.

CatCam HDMI Displayer

LCD Panel : Panasonic IPS LCD Screen(Super TFT)

Input Video Format : HDMI

Resolution : 1920 x 1080 pixels

Display Type : 16:9 Ratio 11.6 Inch Active Matrix Super TFT LCD

Typical Contrast Ratio : 1000:1

Colors : 16.7 million

Viewing Angle(L/R/U/D) : IPS Full View

Active Display Area : 258mm(W) × 145mm(H)

Backlight : LED Backlight, 5000 hours

Operating Temperature : -15 Degree~55 Degree

Humidity Non Condensing : Operating:10%-90%, Storage: 5%-90%

Synchronization Range : 30-80 KHz Horizontal, 55-75 Hz Vertical

Power Supply : AC110V-220V /DC12V(1A )

Power Consumption : Max 12W

CatCam HDMI Displayer
