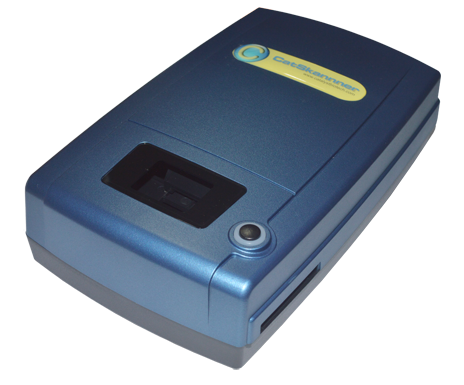

CatSkanner

Histolopathology Slide Scanner

The CatSkanner is designed to allow scanning of whole mounted histological samples attached to standard 1"x3" cover slipped glass slides.
It solves low power, large field of view and high resolution imaging problems.
It captures specimens as large as 36 mm in diameter.
By scanning the entire sample slide in one pass, there is no uneven illumination or out of focus sample edges, as can be the case with traditional low power image capture techniques.
The CatSkanner holds two 1"x3" glass slides.

CatSkanner

» Supports standard microscopy slide of 76mm x 26mm

» Scans Full Slide

» One Button Control - Scans, Saves and Opens Image in an Image Viewer

» Superior Quality, 3-Line CCD Sensor

» 48-bit, 10,000 dpi, 5µm resolution, equivalent to a visual microscope magnification of 50x

» High Dynamic range (3.8 OD), can easily identify each individual cell

» Industry-leading Scanning speeds

» Simple User Interface, compatible with Windows and Mac OS

» CatSkanner is strictly not recommended for wet mounts

CatSkanner

Technical Specifications

Image SensorSuperior Quality, 3-line Color CCD
Light SourceWhite LED Lamp
Hardware Resolution10,000 x 10,000 dpi
Color Depth48-bit
Dynamic Range3.8 OD
Scanning Area (H x W)24.3 x 36.5 mm
Preview SpeedApprox. 4.5 sec (Multi-Sampling ON)
Action ButtonQuickScan
Power Supply12 V DC / 1.5 A
100~240 DC Adaptor
InterfaceUSB 2.0
Net Weight1.05Kgs
Slide Holding CapacityUpto Two Slides
Image FormatJPEG, TIFF
Dimensions260 x 155 x 70 mm
OSWindows XP / Vista / 7 / 8 / 10
Intel-based Mac OS X 10.5+
Hardware RequirementPentium IV
2.0 GHz processor
CD-ROM Driver
One available USB 2.0 Port
512 MB RAM (1GB or higher recommended)
800 MB free HDD space
(1 GB or larger recommended)
