CatCam E-Series HDMI

Multi-Interface HDMI Microscope Camera

CatCam E-Series HDMI

CatCam E-Series HDMI models are multi-interface (HDMI + USB2.0 + SD card) microscoscope camera with CMOS Sensor. HDMI + USB2.0 are used as the data transfer interface to HDMI display or computer.

CatCam E-Series HDMI models with suffix 'AF' are multi-interface (HDMI + USB2.0/Wi-Fi + SD card) microscope camera with CMOS Sensor and Auto Focus Function. During HDMI output, the camera embedded Auto/Manual focus function can obtain the clear image at ease. Hence, No hand rotation of the microscope Coarse/Fine knob is needed.

1

Hardware Features

» All in 1 (HDMI+USB+SD card) C-mount camera with high sensitivity CMOS sensor
» Simultaneous HDMI & USB output
» Built-in mouse control
» Built-in image capture & video record to SD card
» Built-in camera control panel for mouse control
» Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions
» Built-in image & video browsing, display & play
» Color engine with perfect color reproduction capability(USB)

2

Image Acquisition

For HDMI output, a camera control panel and toolbar are overlayed on the HDMI screen, while, the USB mouse can be used to set the camera, browse and compare the captured image, play the video etc. The images/videos captured are directly save onto the SD Card, mounted on the camera.

For USB2.0 output, unplug the mouse and plug in the USB2.0 cable. The video stream gets transferred to computer with the advanced software Catymage, a professional image analysis & processing software, allowing complete camera control and advanced image acquisition and analysis. HDMI or USB 2.0 plug-and-play interface eliminates the need for frame grabbers or any other additional cards to be installed and allows fast video. With Catymage, you can control the HDMI camera like any other CatCam E-Series USB Camera.

For Wi-Fi output (HDMI cameras supporting Wi-Fi operation), unplug the mouse and plug in the USB Wi-Fi adaptor and connect the computer WiFi to the camera, where the Catymage application software controls the HDMI camera like any other CatCam E-Series USB Camera.

3

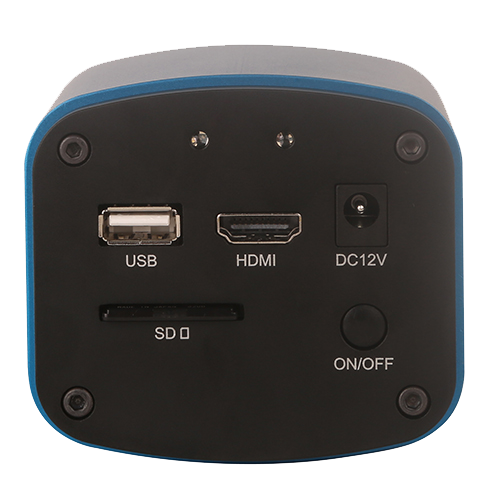

Interface & Button Functions

HDMI : HDMI Output
USB : USB Mouse / USB Camera / Wi-Fi Adaptor
DC 12V : 12V Power in
SD : SD Card Slot
ON/OFF : Power On/Off Switch
LED : Power On Indicator

HDMI

4

Interactive Measurement and annotation

Measurements can be made in any unit you like, using simple calibration and measurement tool. Software elements offer all necessary measurement parameters, such as length, area, angle profile etc. Measurements can be made by drawing the objects directly on the image. All output results can be exported to excel spreadsheet. Annotations (arrow, text, etc.) attached to the image can be saved together.

5

Features

»Exposure, Gain, White Balance & Colour adjustment
» Advanced image processing
» Real time video preview
» Frame rate control
» Image Stitching
» Automatic/Manual Contrast/Brightness/Gamma
» Image stacking
» Read-out of regions of interest (ROI) on the sensor to define important image sections
» Export measurement data to excel for analysis
» Extended Depth of Focus
» Micrometry

6

Warranty

One-year warranty
Free life-time web support for the software

7

Package Content

CatCam E-Series HDMI : HDMI Microscope camera
Power Adaptor: Input - AC 100~240V 50Hz/60Hz, Output - DC 12V 1A
HDMI cable
USB 2.0 cable
SD Card
30mm and 30.5mm adapters
CD containing Driver & softwares
Installation Manual

Microsoft, Windows, and the Microsoft logo are trademarks of Microsoft Computer, Inc., registered in the U.S. and other countries.

Models

Product Cat.No. Product Model No. Product Description Microscopy Application Technical Specification
CC200EHUCatCam200EHU2.0MP Microscope Camera
HDMI + USB + SD		Bright Field
Phase Contrast
Polarization
CC200EHUAFCatCam200EHUAF2.0MP Microscope Camera
HDMI + USB / Wi-Fi + SD
with Auto Focus Function		Bright Field
Phase Contrast
Polarization
CC500EHUAFCatCam500EHUAF5.0MP Microscope Camera
HDMI + USB / Wi-Fi + SD
with Auto Focus Function		Bright Field
Phase Contrast
Polarization
CC8004KHUCC8004KHU8.0MP 4K HDMI Microscope Camera
HDMI + USB + SD
with 4K HDMI Display Function		Bright Field
Phase Contrast
Polarization
Fluorescence
Dark-Field
