Upright Biological Fluorescence Research Microscope
Viewing head with multi-splitting ratio
CS-U9000F viewing head is designed with multiple options for splitting ratio, with wide beam imaging system and 26.5mm super wide field of view is available. Trinocular head with inverted image, splitting ratio Binocular:Trinocular = 100:0 or 20:80 or 0:100. Except for concentrating 100% light to eyepiece tube or camera tube, there is another option with 20% light to eyepiece tube and 80% to camera tube, so that eyepiece observation and image output can be available at the same time. Trinocular head with erect image, splitting ratio Binocular:Trinocular = 100:0 or 0:100.
High eye-point ultra wide field plan eyepieces
Breaking through 22mm conventional field of view, reaching to 25mm and 26.5mm, much smoother and wide field of view, is helpful to improve the work efficiency. Larger adjustable range of diopter from -8 to +5, meets more demands of different users.
Nosepiece
Quintuple / Sextuple / Septuple nosepiece for option with slot for DIC.
Professional Plan Fluorite objectives

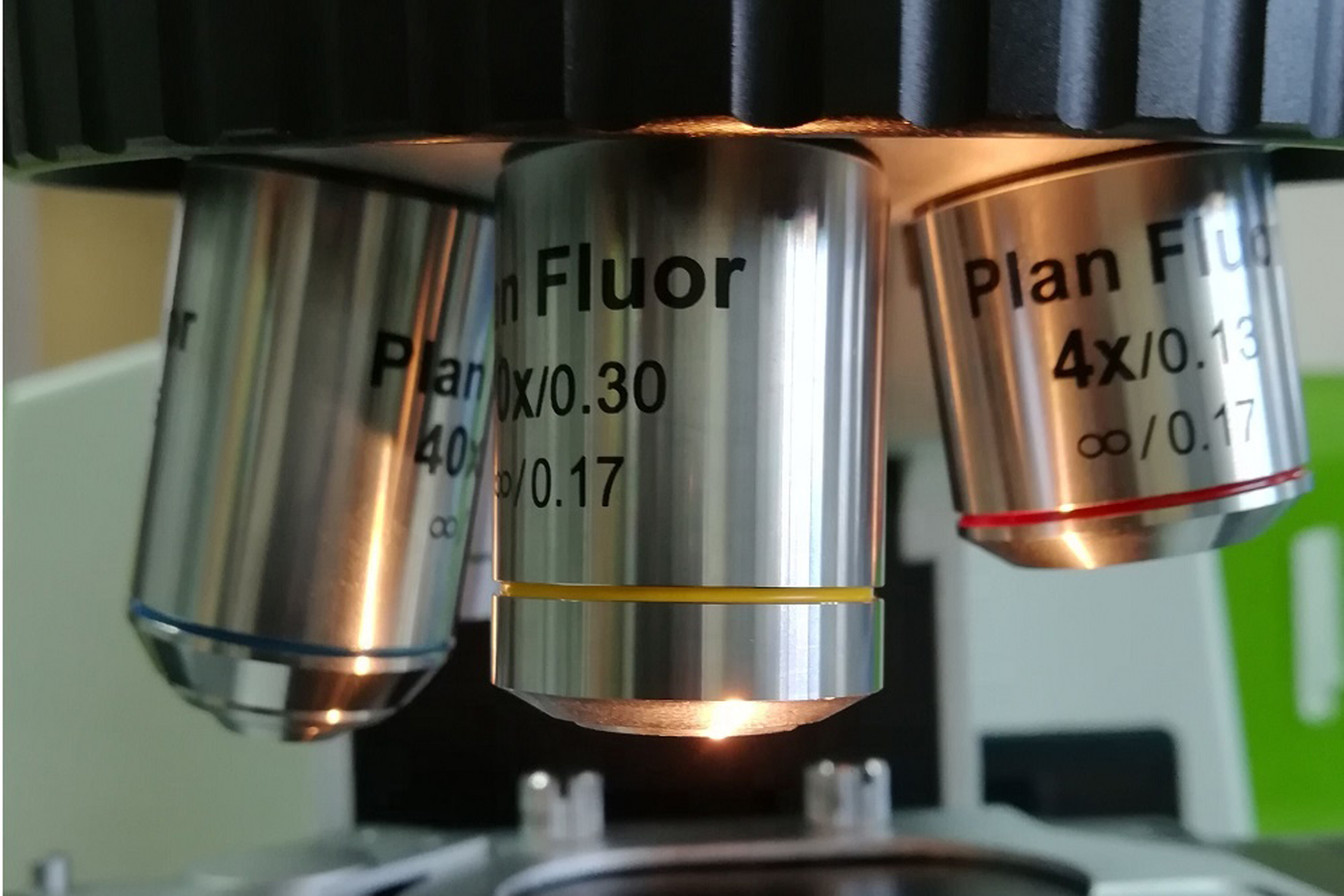

PLAN-FLUOR series infinity plan semi-apochromatic / Apochromatic objectives, is the best choice for fluorescence observation. Adopting crystal optics materials, perfectly corrects all kinds of chromatic aberrations. Large numerical aperture design presents high resolution, high contrast micro-images. In fluorescence observation, the image is clear and bright while the background is pure black, prominent for ultraviolet fluorescence.
Large stage with adjustment on either side In order to correct the shortcoming of horizon guide rail, new stage is designed with double-way linear driving mechanism. This change protects the stage from overload at the end of both rails, improves the rigidity and performance of the stage.
The handle of the stage can be set on either side, based on user’s preference. The X, Y biaxial adjustments are designed with low position for comfortable operation.
Specially processed, the surface of the stage is anti-corrosive and anti-friction. The platform with an arc transition design reduces the stress concentration and damage from impact.
Condenser
N.A. 0.9 swing-out type achromatic condenser, with iris diaphragm and aperture scale, provides sufficient and uniform light for full-field observation in different magnifications.
Light Source
Koehler Illumination System. 12V/100W external halogen lamp house provides transmitted light. Illuminator center is preset, hence no adjustment needed after replacing the lamp. Built-in 100-240V wide voltage transformer. Intensity adjustable by digital set and reset.
Built-in transmitted filters.
Neutral Density Filter – ND6. Neutral Density Filter – ND25. Interference Filter – LBD (Natural).
It uses a rotary filter-selector which can house up to six fluorescence filter-blocks; already included are ultraviolet, violet, blue, and green excitation blocks. High precision and stable rotary table and high-performance imported filter ensures a drift-free image.
There is a light shutter in front of the reflected illuminator. It is used to shut the fluorescent light to prevent fluorescence quenching of the slice.
The light barrier can protect users from the harm of UV light.
The use of ND attenuation filter, or aperture and field diaphragm rod can efficiently reduce the intensity of exciting light to protect the slice.

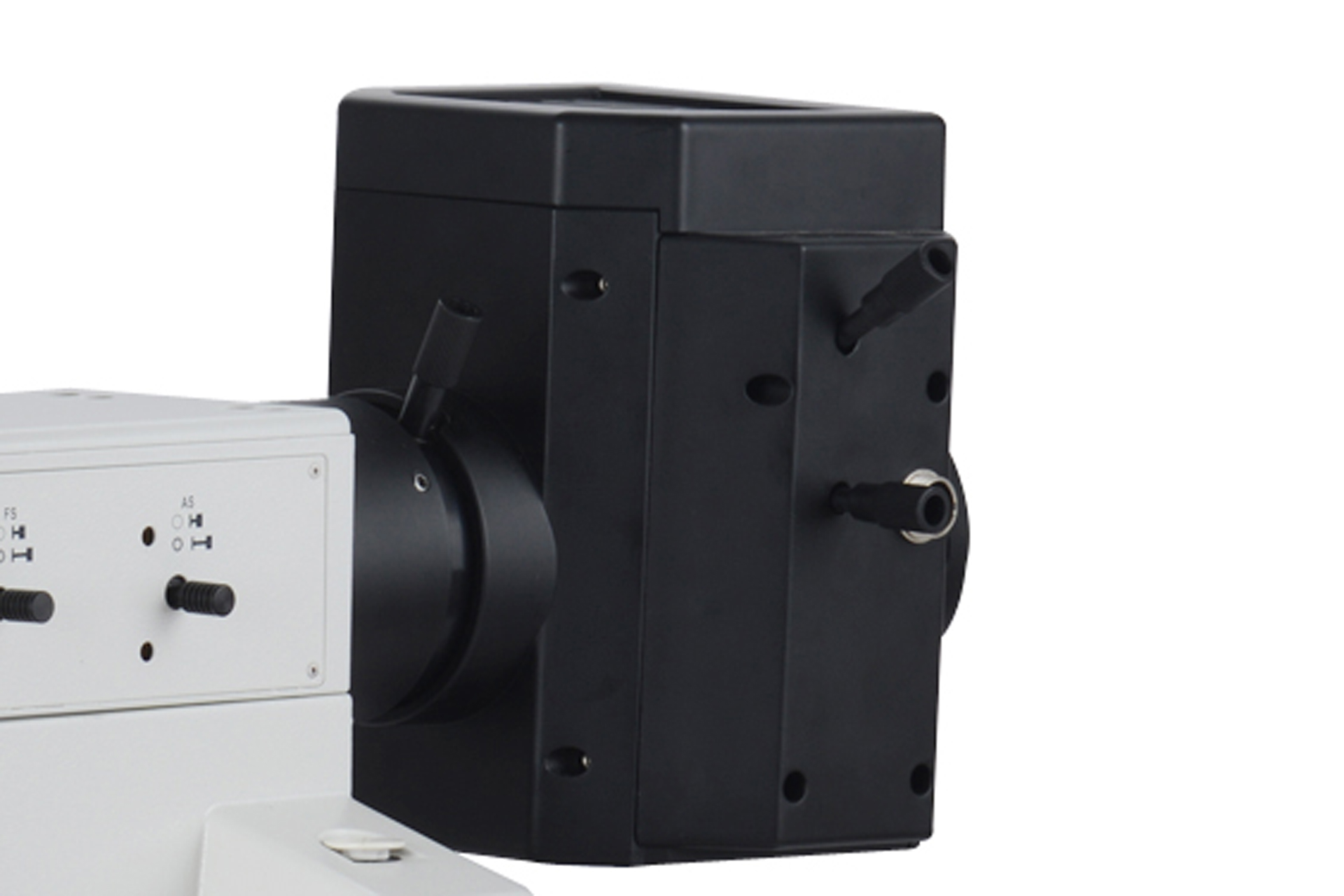

The mercury lamp house has a powerful 100W, wide-spectrum, mercury-vapor episcopic illuminator. It is also equipped with centering knobs, which helps users in adjusting the filament center to make sure that there is sufficient and uniform fluorescent illumination.
Universal Infinity Corrected Optical System
Seidentopf Trinocular head with inverted image, inclined at 30°
Interpupilary Distance adjustment range : 50-76mm
Diopter adjustment : -8 to +5°
High Eye-Point WF PL 10X/25mm
Sextuple with slot for DIC, Backward tilted, click-stop
Revolving mechanism with multiple ball bearing
Infinite Plan Semi-Apochromatic Fluorescence Objectives - 4x, 10x, 20x(Spring), 40x(Spring) & 100x(Spring, Oil)
Anti-fungal, Parfocal, Parcentric, Colour-coded
Anti-Corrosive & Anti-Friction Double Layer Rackless Mechanical Stage
Double Slide Holder
Stage Size : 187 x 166mm
Movement range : 88mm(x-axis) x 55mm(y-axis)
Movement controlled with a long right hand stage handle
Stage height movement with Coaxial coarse and Fine Focusing Adjustment knob, by Rack and Pinion mechanism
Fine focusing interval 0.001mm
Coarse range 25mm
Swing Type 0.9 N.A. Abbe Condenser with Apperture Iris Diaphragmand position guide markings for each objective
External Illumination, Kohler illuminator system
Aspherical collector, Halogen Illumination 12V/100W with digital light control
Field Diaphragm
100V – 240V universal power supply
Turret Type Fluorescent Attachment with
position for Six Excitation Filters
Fluorescence Filters:
- Ultraviolet: BP330-385nm, DM400nm, BA420nm
- Violet: BP400-410nm, DM455nm, BA455nm
- Blue: BP460-495nm, DM505nm, BA510-550nm
- Green: BP510-550nm, DM570nm, BA590nm
Reflected Light source:Epi-Illuminator 100W Mercury Lamp House
Fluorescence illuminator has adjustable iris field diaphragm and aperture diaphragm
Power Supply:Mercury Lamp Power House, Digital Display
LBD, ND6, ND25
» Seidentopf Trinocular head with erect image
» Eyepiece WF PL 10X/26.5mm
» Septuple nosepiece
» 75W Xenon lamphouse, (for reflection), the center of filament can be adjusted
» Micro-photography
» Phase Contrast Application
» Dark Field Application
