CatScope : CS-U9000

Upright Biological Research Microscope

CS-U9000

CS-U9000, a modular biological microscope has been ergonomically designed to present a safe, comfortable and stress-free observation experience for users. With robust structure, high-definition optical image and user-friendly operating system, CS-U9000 helps in professional analysis, and meets all the needs of microscopic research in scientific, medical and other fields.

CS-U9000

HEAD

Viewing head with multi-splitting ratio

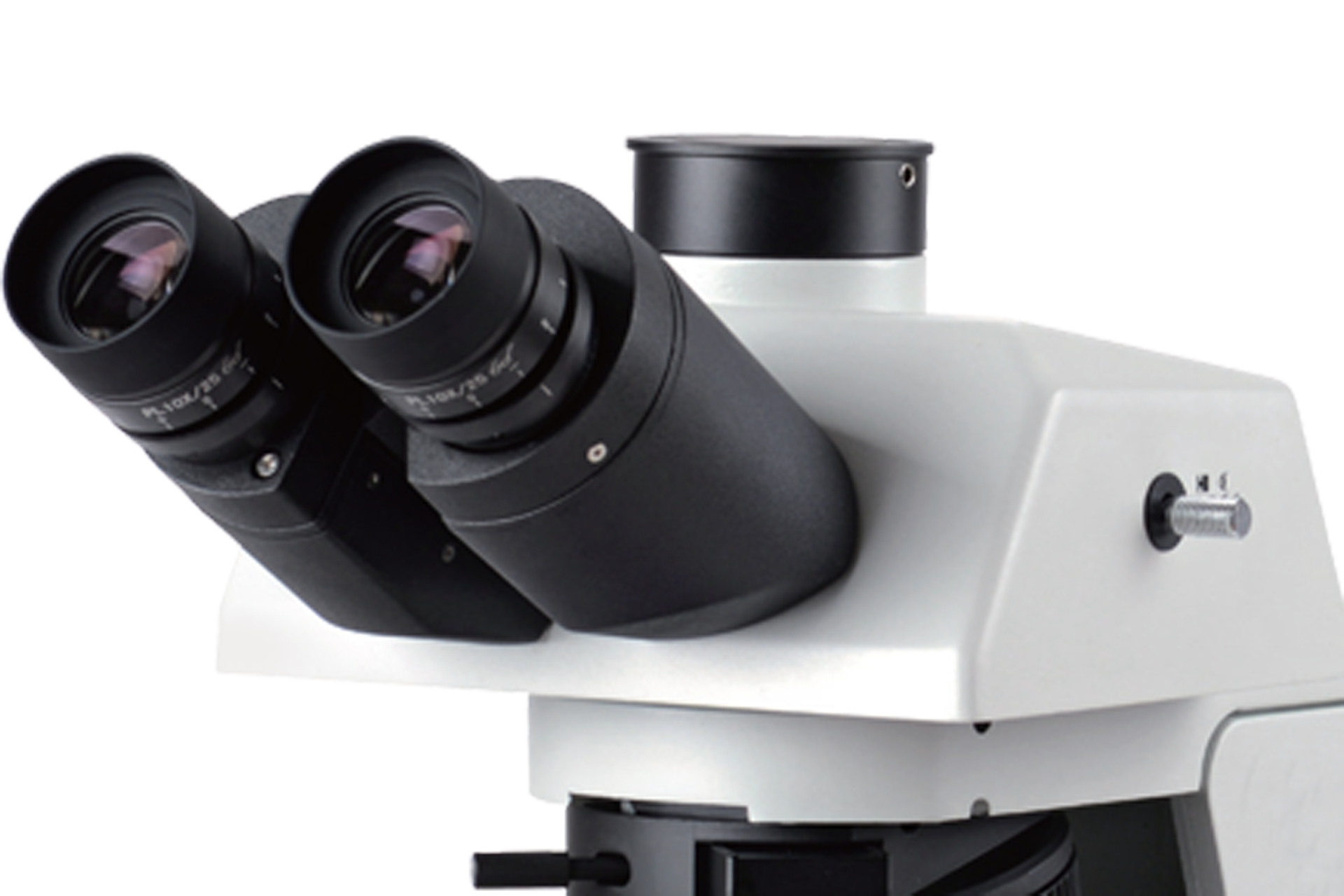

CS-U9000 viewing head is designed with multiple options for splitting ratio, with wide beam imaging system and 26.5mm super wide field of view is available. Trinocular head with inverted image, splitting ratio Binocular:Trinocular = 100:0 or 20:80 or 0:100. Except for concentrating 100% light to eyepiece tube or camera tube, there is another option with 20% light to eyepiece tube and 80% to camera tube, so that eyepiece observation and image output can be available at the same time. Trinocular head with erect image, splitting ratio Binocular:Trinocular = 100:0 or 0:100.
High eye-point ultra wide field plan eyepieces
Breaking through 22mm conventional field of view, reaching to 25mm and 26.5mm, much smoother and wide field of view, is helpful to improve the work efficiency. Larger adjustable range of diopter from -8 to +5, meets more demands of different users.

CS-U9000

NOSEPIECE & OBJECTIVES

Nosepiece
Quintuple / Sextuple / Septuple nosepiece for option with slot for DIC.

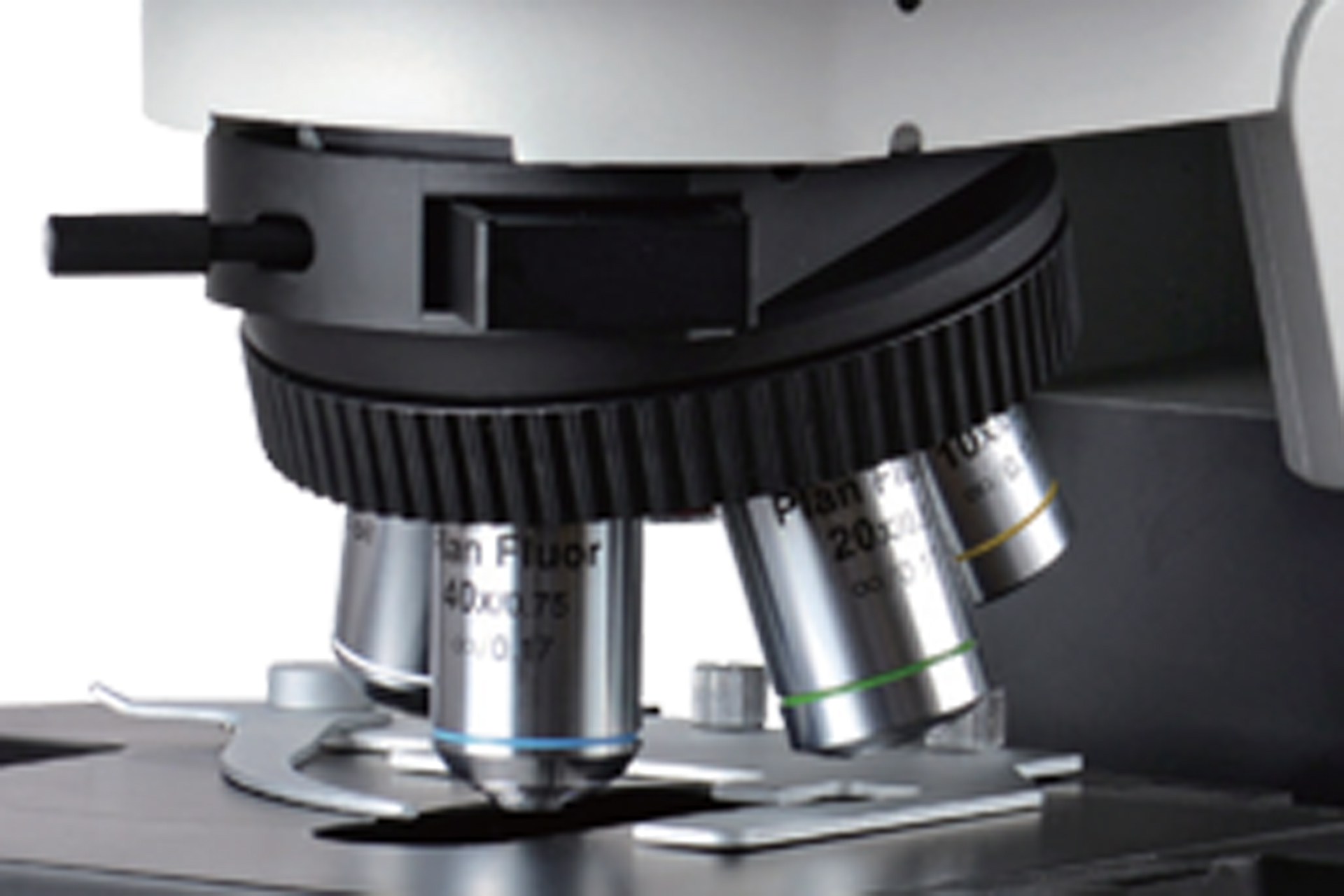

Professional plan fluorite objectives
PLAN-FLUOR series infinity plan semi-apochromatic objectives, is the best choice for fluorescence observation. Adopting crystal optics materials, perfectly corrects all kinds of chromatic aberrations. Large numerical aperture design presents high resolution, high contrast micro-images. In fluorescence observation, the image is clear and bright while the background is pure black, prominent for ultraviolet fluorescence.

CS-U9000

RACKLESS STAGE

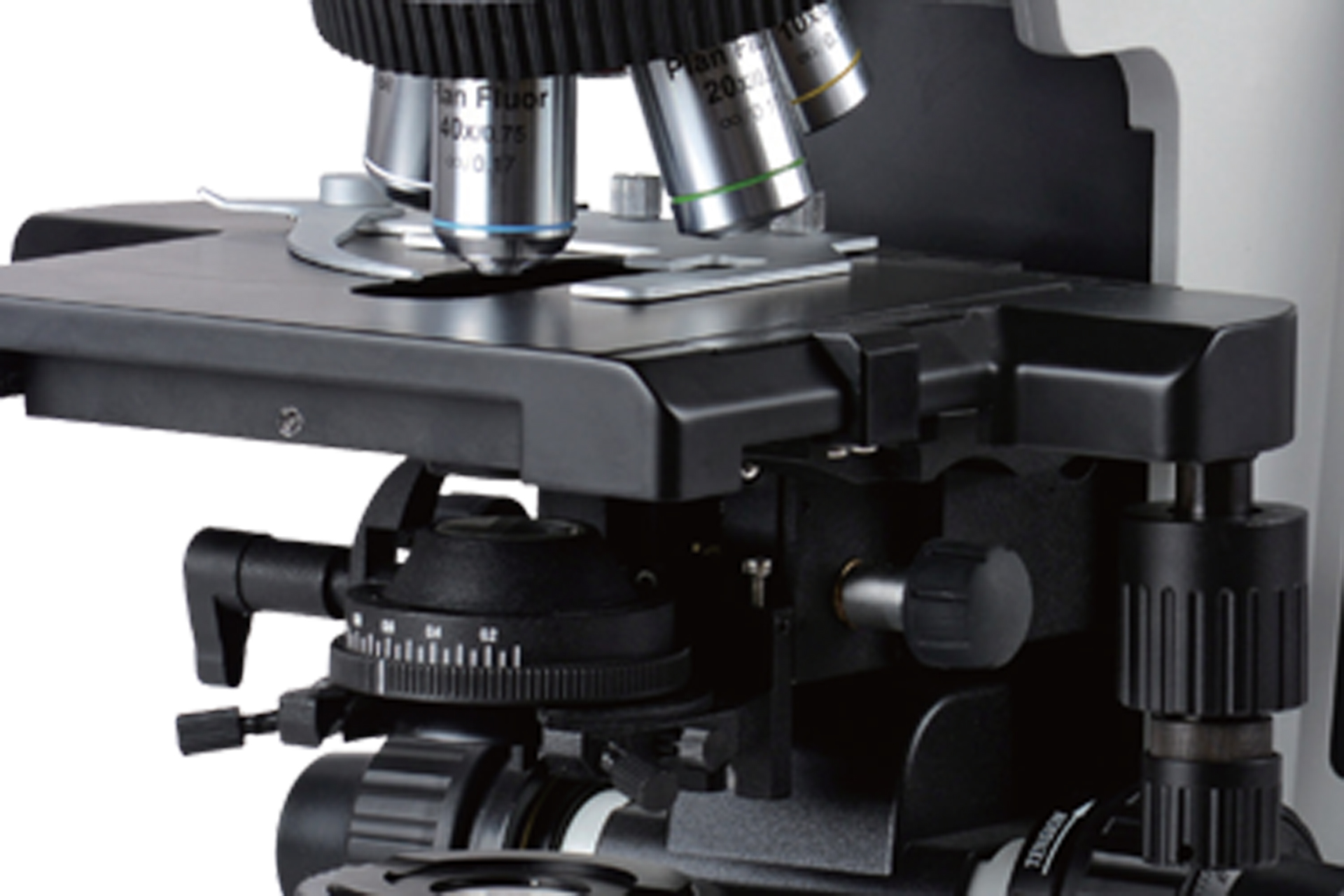

Large stage with adjustment on either side In order to correct the shortcoming of horizon guide rail, new stage is designed with double-way linear driving mechanism. This change protects the stage from overload at the end of both rails, improves the rigidity and performance of the stage.
The handle of the stage can be set on either side, based on user’s preference. The X, Y biaxial adjustments are designed with low position for comfortable operation. Specially processed, the surface of the stage is anti-corrosive and anti-friction. The platform with an arc transition design reduces the stress concentration and damage from impact.

CS-U9000

ILLUMINATION

Condenser
N.A. 0.9 swing-out type achromatic condenser, with iris diaphragm and aperture scale, provides sufficient and uniform light for full-field observation in different magnifications.
Light Source

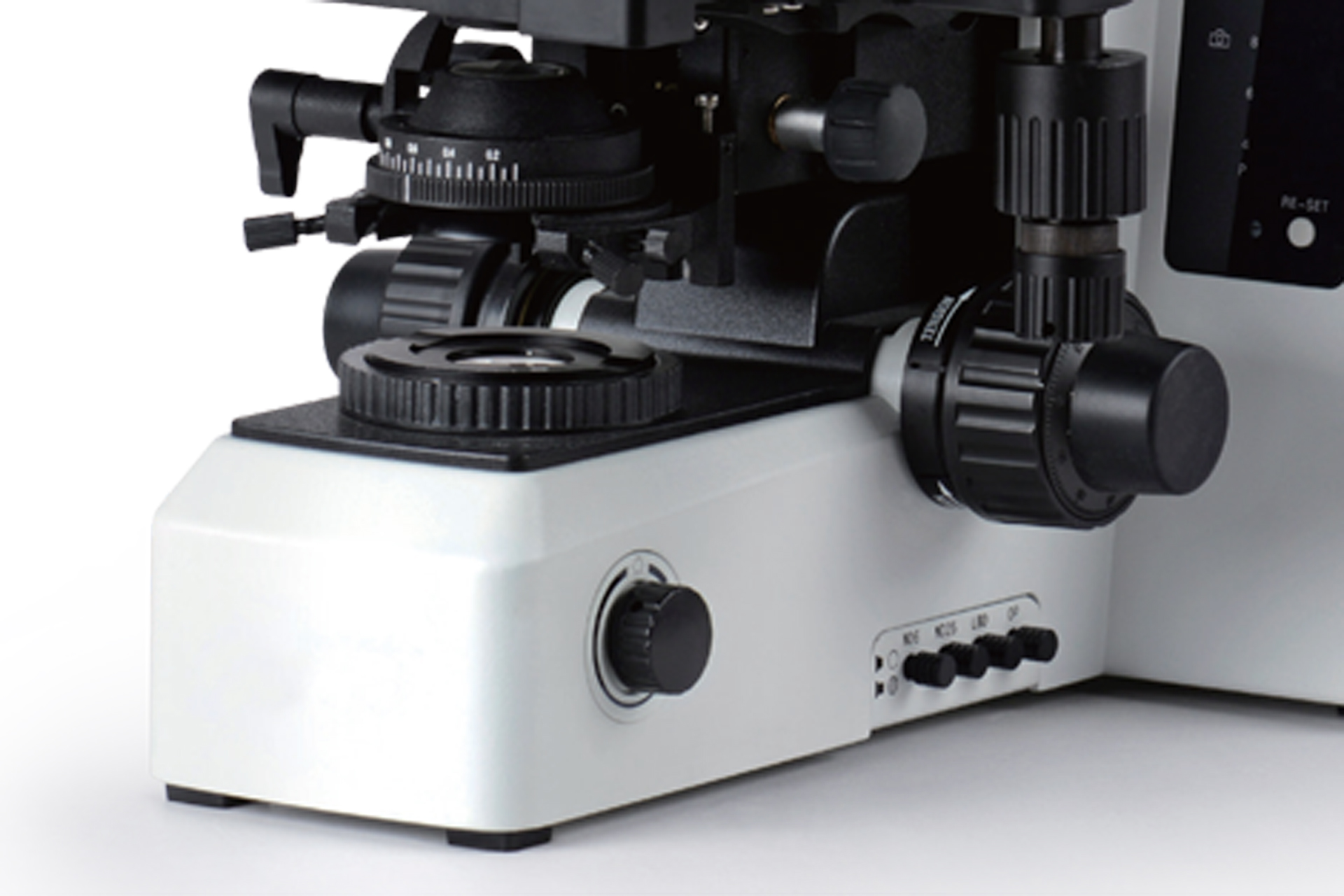

Koehler Illumination System. 12V/100W external halogen lamp house provides transmitted light. Illuminator center is preset, hence no adjustment needed after replacing the lamp. Built-in 100-240V wide voltage transformer. Intensity adjustable by digital set and reset.
Built-in transmitted filters.
Neutral Density Filter – ND6. Neutral Density Filter – ND25. Interference Filter – LBD (Natural).

Technical Specification


1

Head

Universal Infinity Corrected Optical System
Seidentopf Trinocular head with inverted image, inclined at 30°
Interpupilary Distance adjustment range : 50-76mm
Diopter adjustment : -8 to +5°
High Eye-Point WF PL 10X/25mm

2

Nosepiece

Sextuple with slot for DIC, Backward tilted, click-stop
Revolving mechanism with multiple ball bearing
Infinite Plan Semi-Apochromatic Fluorescence Objectives
Anti-fungal, Parfocal, Parcentric, Colour-coded 4x, 10x, 20x(Spring), 40x(Spring) & 100x(Spring, Oil)

3

Stage

Anti-Corrosive & Anti-Friction Double Layer Rackless Mechanical Stage Double Slide Holder
Stage Size : 187 x 166mm
Movement range : 88mm(x-axis) x 55mm(y-axis)
Movement controlled with a long right hand stage handle

4

Focusing

Stage height movement with Coaxial coarse and Fine Focusing Adjustment knob, by Rack and Pinion mechanism
Fine focusing interval 0.001mm
Coarse range 25mm

5

Condenser

Swing Type 0.9 N.A. Abbe Condenser with Apperture Iris Diaphragmand position guide markings for each objective

6

Illumination

External Illumination, Kohler illuminator system
Aspherical collector, Halogen Illumination 12V/100W with digital light control
Field Diaphragm
100V – 240V universal power supply

7

Filters

LBD, ND6, ND25

8

Options in-lieu of standard specification

» Seidentopf Trinocular head with erect image
» Eyepiece WF PL 10X/26.5mm
» Quintuple nosepiece
» Septuple nosepiece

9

CS-U9000 can be upgraded for the following applications:

» Micro-photography
» Phase Contrast Application
» Dark Field Application
» Fluorescence Application
» Multi-Viewing Attachment

Download Brochure

Download Brochure
