CatScope : CS-U8000FL

Upright Biological Fluorescence Research Microscope

CS-U8000FL

CS-U8000FL is an upright fluorescence microscope with transmitted and reflected illumination. Reflected light source being LED, which is a cold light source, it eliminates the need for cooling system or the warm up time. The microscope is built around an infinity-corrected optical system with Koehler diascopic and episcopic illumination and excellent optical quality presenting perfect image. Ergonomic design, steady system structure, easy operation, makes it suitable for various working environments..

CS-U8000FL

HEAD

Viewing head
Comfortable observation with compensation free trinocular head inclined at 30°, suitable for observer, with wide interpupillary range of 48-75mm.
High eye-point ultra wide field plan eyepieces
Breaking through 20mm conventional field of view, reaching to 22mm, much smoother and wide field of view, is helpful to improve the work efficiency. Larger adjustable range of diopter from -5 to +5, meets more demands of different users.

CS-U8000FL

NOSEPIECE & OBJECTIVES

Nosepiece
Large operating space with backward quintuple nosepiece and option with slot for Analyzer.
Professional Infinity plan objectives
Infinity Plan Achromatic objectives, designed for observing biological samples, present sharp and contrast images.
Plan-PH series Infinity Plan Phase Contrast objectives, improve clarity and contrast, especially suitable to observe colorless or light-colored cells.

CS-U8000FL

STAGE

Rectangular double layer mechanical stage 188x142mm, moving range 75x55mm, comfortable operation with low position adjustable knob.

CS-U8000FL

TRANSMITTED ILLUMINATION

Condenser
Abbe Type condenser is marked with positions for respective objectives. Aspherical condenser and Kohler illumination, provides enough, even and high contrast illumination for various objective observations. Illuminator is provided with field diaphragm.
Light Source
Koehler Illumination System. 6V/30W external halogen lamp house provides transmitted light. Illuminator center is preset, hence no adjustment needed after replacing the lamp. Built-in 100-240V wide voltage transformer.

CS-U8000FL

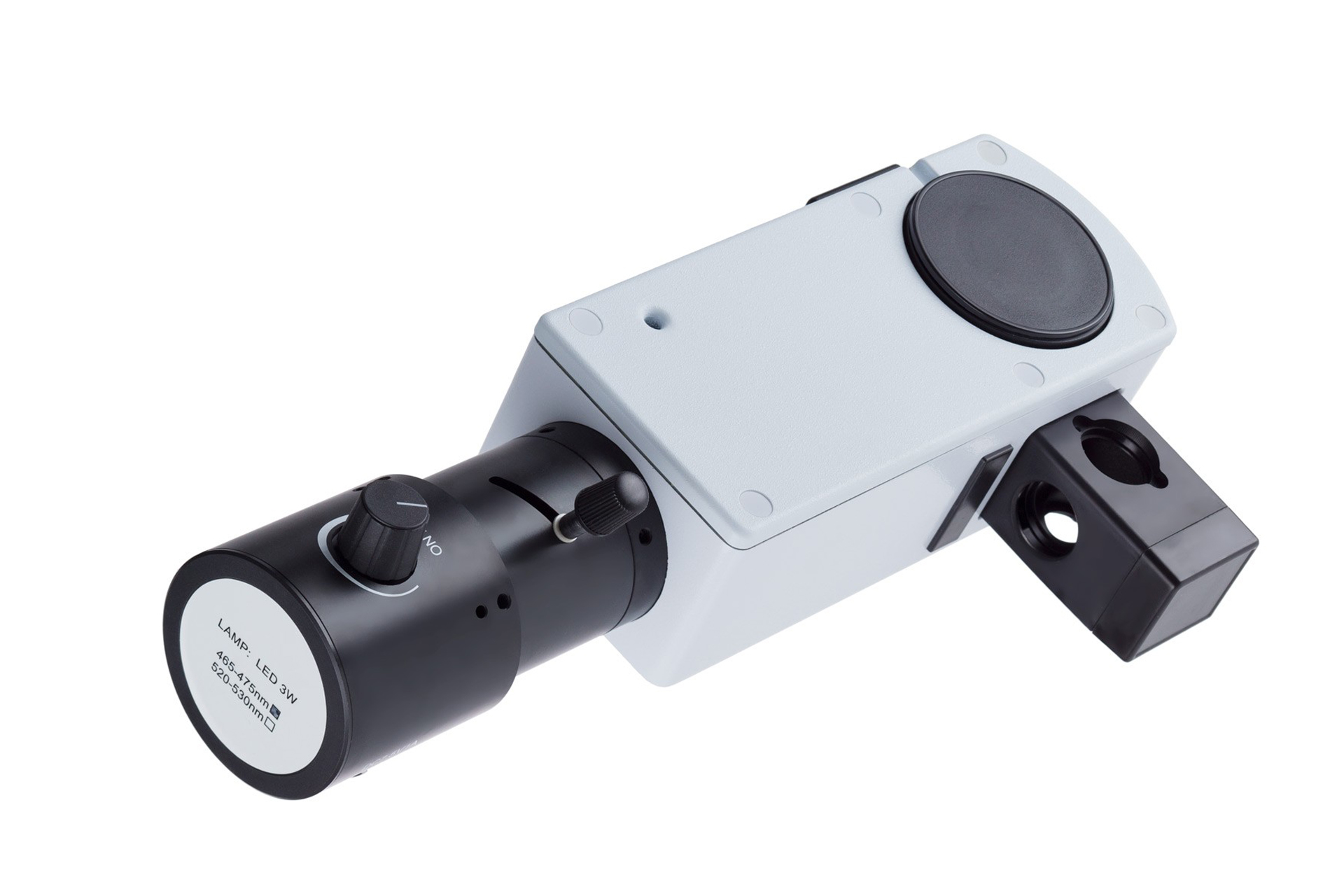

FLUOROSCOPE BOX

It uses a slider with two slots, one for the fluorescence filter and other for bright-field observation. It has LED-based epi-illuminator for blue-band fluorescence microscopy. The LED-based fluorescence epi-illuminator uses a modular design, requiring separate LED modules and filters for different light bands. The included kit generates an excitation source in the blue band, and the filter assembly allows for emissions in the green to red band.

Technical Specification


1

Head

Universal Infinity Corrected Optical System
Seidentopf Trinocular head with inverted image, inclined at 30°
Interpupilary Distance adjustment range : 48-75mm
Diopter adjustment : ±5°
Extra Wide Field WF 10X/22mm

2

Nosepiece

Quintuple with slot for Analyzer, Backward tilted, click-stop Revolving mechanism with multiple ball bearing
Infinite Plan Achromatic Objectives
Anti-fungal, Parfocal, Parcentric, Colour-coded 4x, 10x, 20x(Spring), 40x(Spring) & 100x(Spring, Oil)

3

Stage

Double Layer Mechanical Stage
Double Slide Holder
Stage Size : 185 x 142mm
Movement range : 75mm(x-axis) x 55mm(y-axis)
Movement controlled with a long right hand stage handle

4

Focusing

Stage height movement with Coaxial coarse and Fine Focusing Adjustment knob, by Rack and Pinion mechanism
Fine focusing interval 0.001mm
Coarse stroke 37.7mm per rotation
Fine stroke 0.1mm per rotation
Moving range 24mm

5

Condenser

Swing Type 0.9/0.25 N.A. Abbe Condenser with Apperture Iris Diaphragmand position guide markings for each objective

6

Transmitted Illumination

External Illumination, Kohler illuminator system
Aspherical collector, Halogen Illumination 6V/30W with Adjustable Brightness
Field Diaphragm
85V – 250V universal power supply

7

Reflected Illumination

Slider Type Fluorescent Attachment with position for One Excitation Filters
LED-based epi-illuminator for blue-band fluorescence microscopy

8

Options in-lieu of standard specification

Ergonomic tiltable Binocular/Triocular head
Sextuple nosepiece
Transmitted Halogen Illumination - 24V/100W
Transmitted LED Illumination
Plan Semi-Apochromatic Objectives - 4x, 10x, 20x(Spring), 40x(Spring) & 100x(Spring, Oil)
LED-based epi-illuminator for Green-band fluorescence microscopy

9

CS-U8000FL can be upgraded for the following applications:

» Micro-photography
» Phase Contrast Application
» Dark Field Application
» Simple Polarization Attachment
» LED-based epi-illuminator for Green-band fluorescence microscopy

Download Brochure

Download Brochure

CS-U8000FL
