Head
Universal Infinity Corrected Optical System
Seidentopf Trinocular head with inverted image, inclined at 30°
Interpupilary Distance adjustment range : 48-75mm
Diopter adjustment : ±5°
Extra Wide Field WF 10X/22mm
CS-U8000F
CS-U8000F is an upright fluorescence microscope with transmitted and reflected illumination and a six-filter turret. The microscope is built around an infinity-corrected optical system with Koehler diascopic and episcopic illumination and excellent optical quality presenting perfect image. Ergonomic design, steady system structure, easy operation, makes it suitable for various working environments..
HEAD

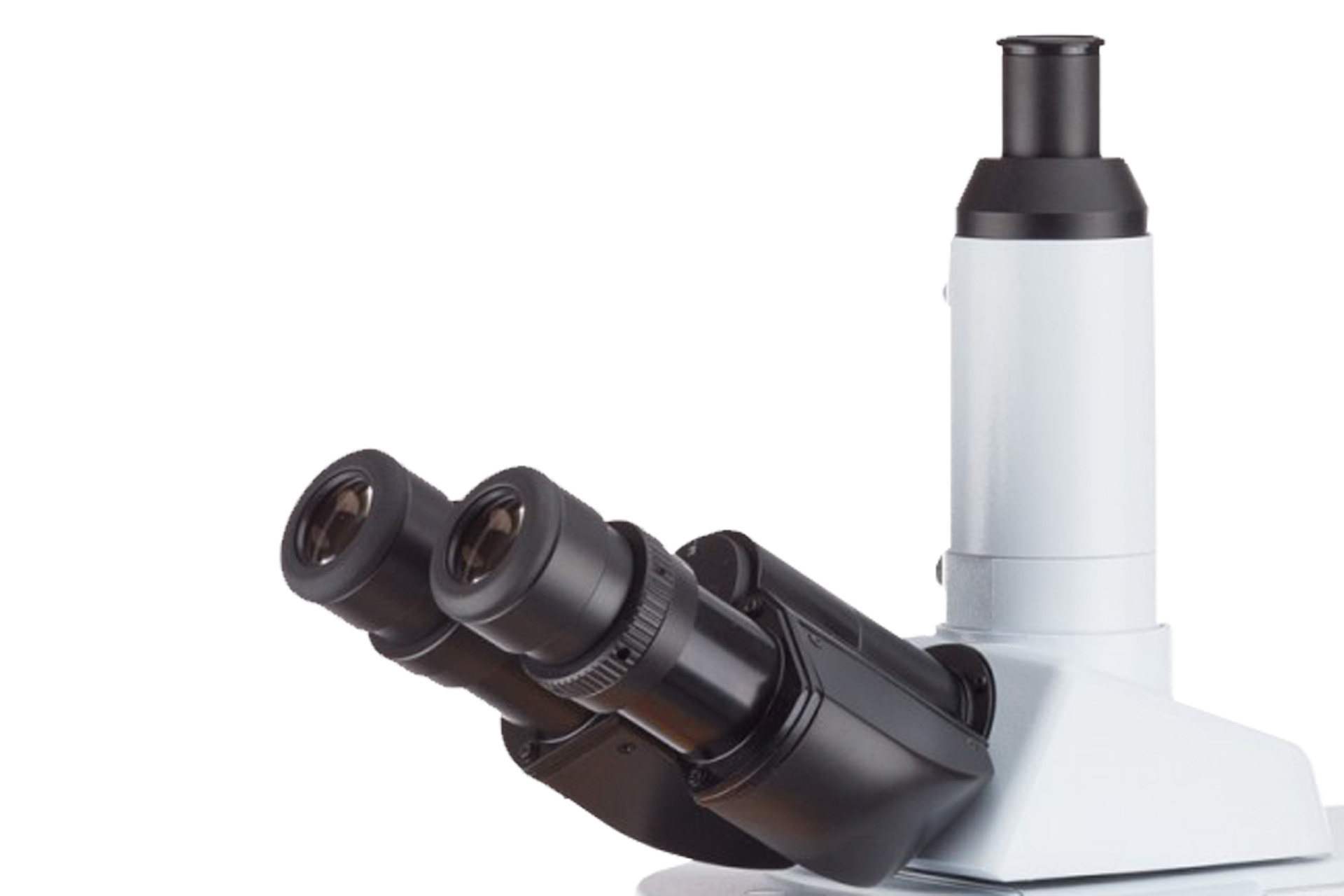

Viewing head
Comfortable observation with compensation free trinocular head inclined at 30°, suitable for observer, with wide interpupillary range of 48-75mm.
High eye-point ultra wide field plan eyepieces
Breaking through 20mm conventional field of view, reaching to 22mm, much smoother and wide field of view, is helpful to improve the work efficiency. Larger adjustable range of diopter from -5 to +5, meets more demands of different users.
NOSEPIECE & OBJECTIVES
Nosepiece
Large operating space with backward quintuple nosepiece and option with slot for Analyzer.
Professional Infinity plan objectives
Infinity Plan Achromatic objectives, designed for observing biological samples, present sharp and contrast images.
Plan-PH series Infinity Plan Phase Contrast objectives, improve clarity and contrast, especially suitable to observe colorless or light-colored cells.
STAGE
Rectangular double layer mechanical stage 188x142mm, moving range 75x55mm, comfortable operation with low position adjustable knob.
TRANSMITTED ILLUMINATION

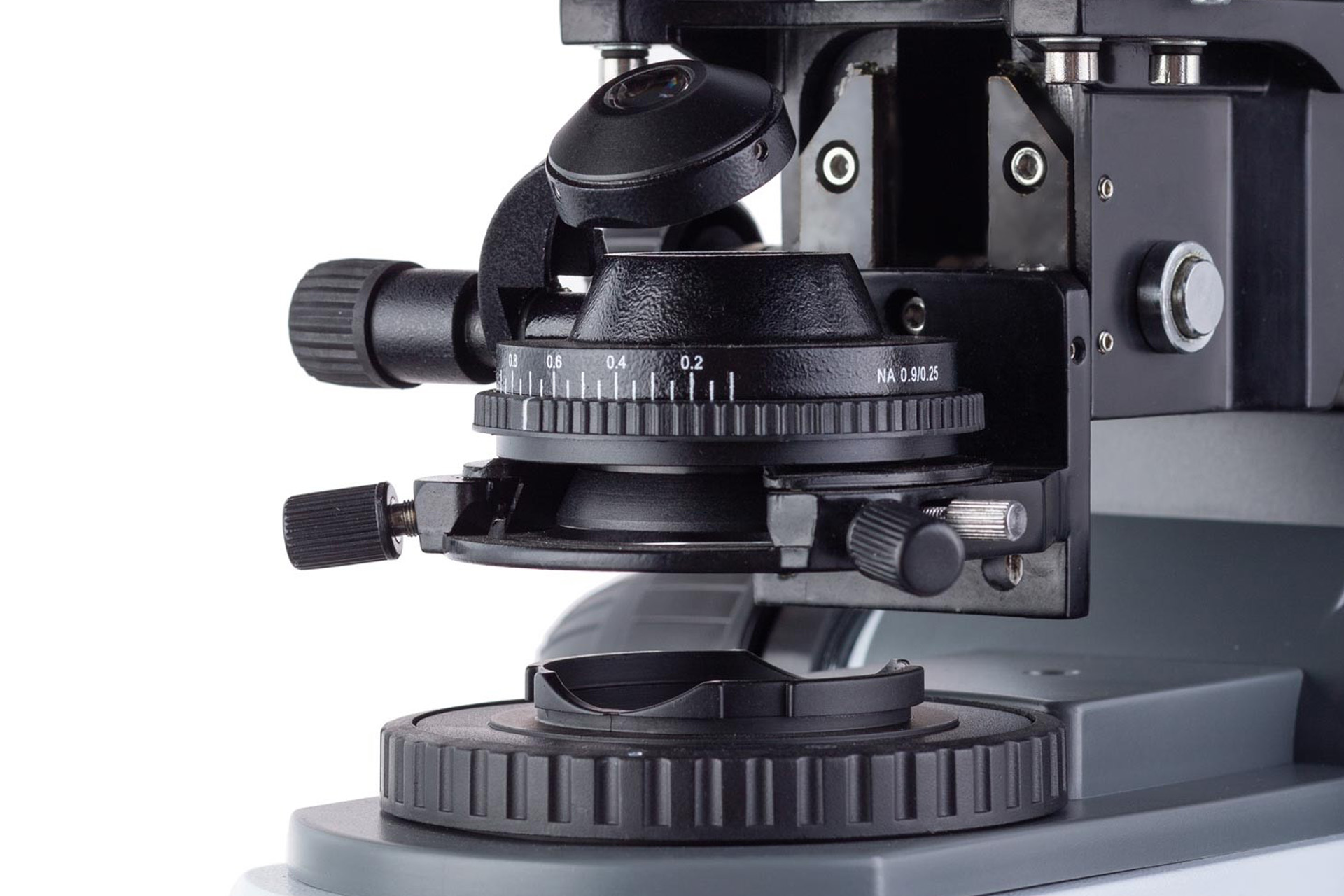

Condenser
Abbe Type condenser is marked with positions for respective objectives. Aspherical condenser and Kohler illumination, provides enough, even and high contrast illumination for various objective observations. Illuminator is provided with field diaphragm.
Light Source
Koehler Illumination System. 6V/30W external halogen lamp house provides transmitted light. Illuminator center is preset, hence no adjustment needed after replacing the lamp. Built-in 100-240V wide voltage transformer.
FLUOROSCOPE BOX

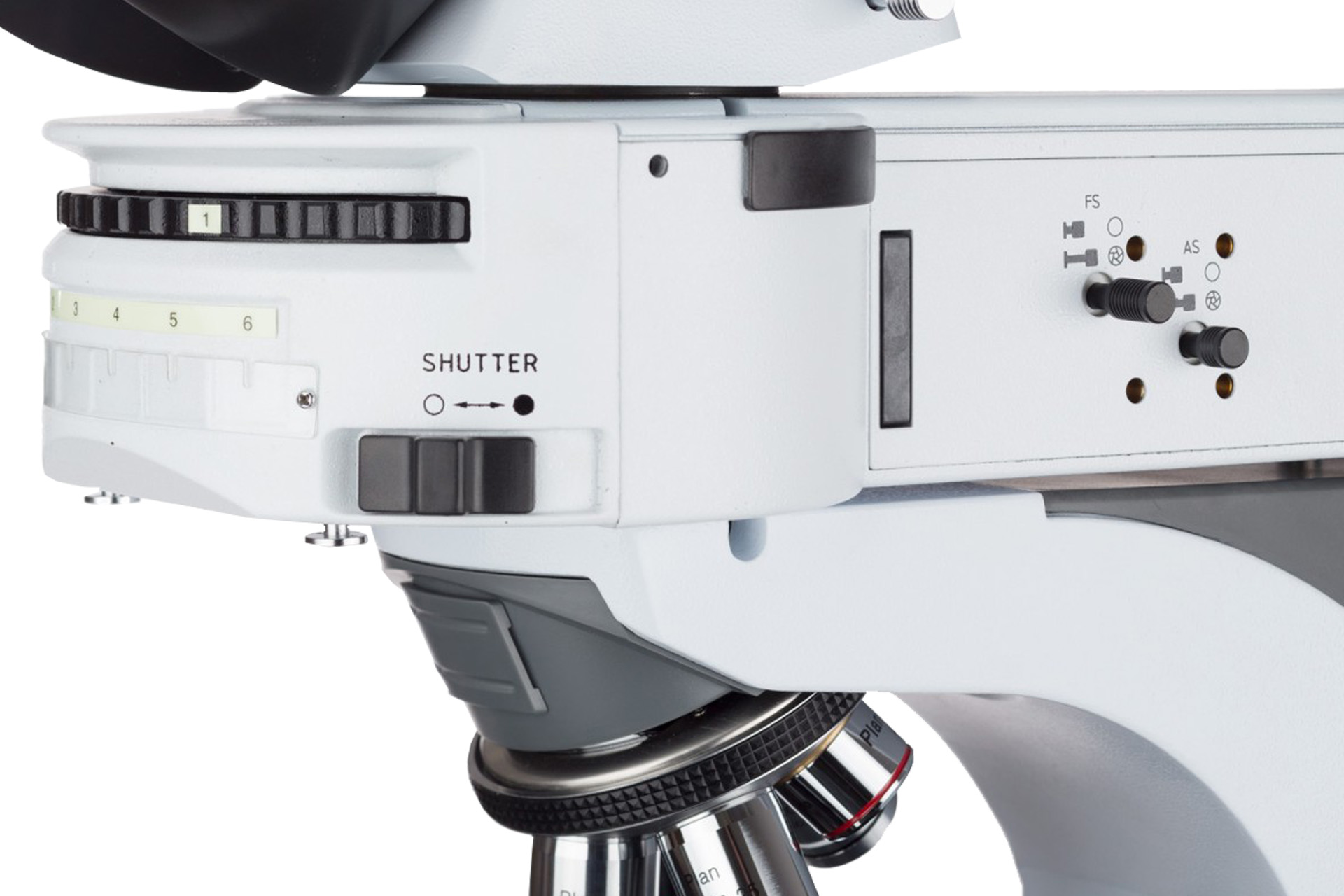

It uses a rotary filter-selector which can house up to six fluorescence filter-blocks; already included are ultraviolet, violet, blue, and green excitation blocks.
REFLECTED ILLUMINATION

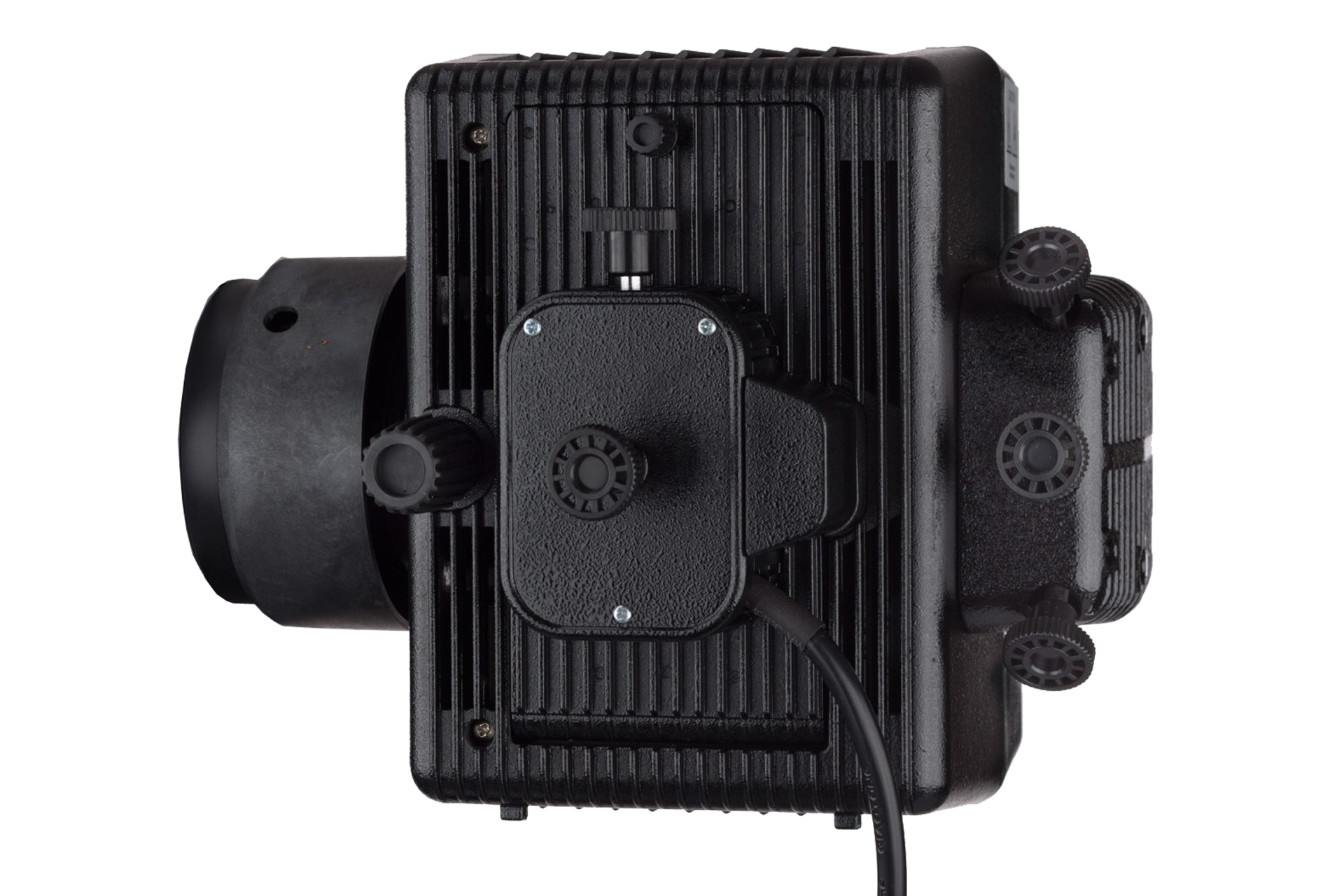

The powerful 100W, wide-spectrum, mercury-vapor episcopic illuminator.
