CatScope : CS-U7000F

Upright Biological Research Microscope

CS-U7000F

CS-U7000F, is a professional upright fluorescence biological microscope, designed for Epi-fluorescence and brightfield imaging with optional Phase-Contrast, Darkfield, and Polarizing imaging. It can accomodate Six Fluorescence filters and Five objective lenses (quintuple nosepiece). It has been ergonomically designed to present a safe, comfortable and stress-free observation experience for users. With robust structure, high-definition optical image and user-friendly operating system, CS-U7000F helps in professional analysis, and meets all the needs of microscopic research.

CS-U7000F

HEAD

Viewing head with multi-splitting ratio
CS-U7000F viewing head is designed with multiple options for splitting ratio, with wide beam imaging system and 22mm super wide field of view is available. Trinocular head with inverted image, splitting ratio Binocular:Trinocular = 100:0 or 0:100. Trinocular head with erect image, splitting ratio Binocular:Trinocular = 100:0 or 0:100.
High eye-point ultra wide field plan eyepieces
Breaking through 20mm conventional field of view, reaching to 22mm, much smoother and wide field of view, is helpful to improve the work efficiency. Larger adjustable range of diopter from -5 to +5, meets more demands of different users.

CS-U7000F

NOSEPIECE & OBJECTIVES

Nosepiece
Quadruple / Quintuple nosepiece for option with slot for Analyzer.
Professional Plan Fluorite objectives
PLAN-FLUOR series infinity plan semi-apochromatic / Apochromatic objectives, is the best choice for fluorescence observation. Adopting crystal optics materials, perfectly corrects all kinds of chromatic aberrations. Large numerical aperture design presents high resolution, high contrast micro-images. In fluorescence observation, the image is clear and bright while the background is pure black, prominent for ultraviolet fluorescence.

CS-U7000F

RACKLESS STAGE

In order to correct the shortcoming of horizon guide rail, new stage is designed with double-way linear driving mechanism. This change protects the stage from overload at the end of both rails, improves the rigidity and performance of the stage.
150×162mm double layer mechnical stage (surface with ceramic treatment); with X-asis rackless, moving range 76X50mm, precision:0.1mm.
Optionally available is, 187×166mm double layer mechnical stage; with X-asis & Y-asis rackless, moving range 80X50mm, precision:0.1mm.

CS-U7000F

ILLUMINATION

Condenser
NA1.2/0.22 swing out achromatic condenser with marked iris diaphragm and aperture scale, provides sufficient and uniform light for full-field observation in different magnifications.
Light Source
Koehler Illumination System. 6V/30W external halogen lamp house provides transmitted light. Illuminator center is preset, hence no adjustment needed after replacing the lamp. Built-in 100-240V wide voltage transformer. Intensity adjustable by digital set and reset. Optionally 3W LED Lamp, external illumination is also available.

CS-U9000F

FLUOROSCOPE BOX

It uses a rotary filter-selector which can house up to six fluorescence filter-blocks; already included are ultraviolet, violet, blue, and green excitation blocks. High precision and stable rotary table and high-performance filter ensures a drift-free image.
There is a light shutter in front of the reflected illuminator. It is used to shut the fluorescent light to prevent fluorescence quenching of the slice.
The light barrier can protect users from the harm of UV light.
The use of ND attenuation filter, or aperture and field diaphragm rod can efficiently reduce the intensity of exciting light to protect the slice.

CS-U9000F

REFLECTED ILLUMINATION

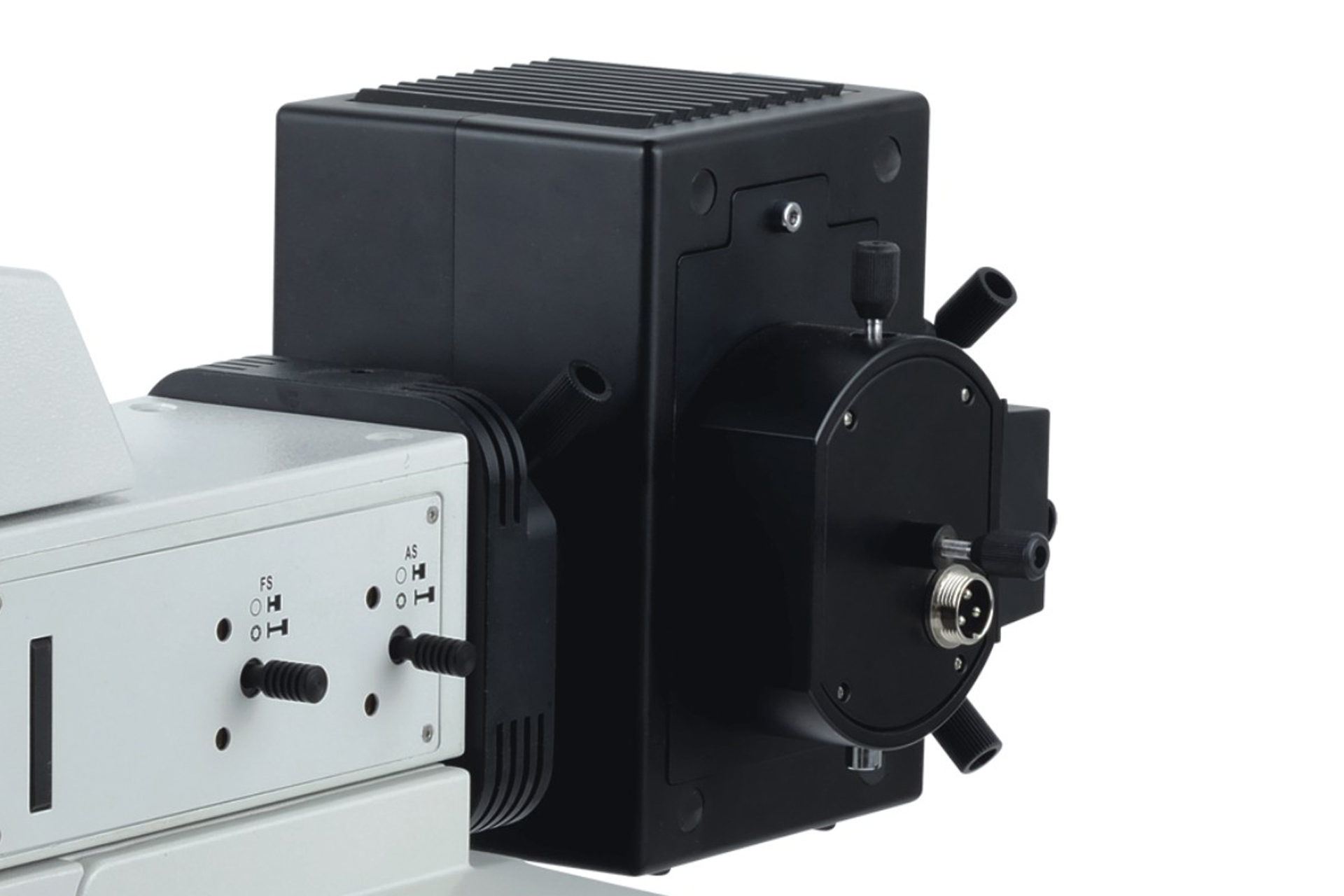

The mercury lamp house has a powerful 100W, wide-spectrum, mercury-vapor episcopic illuminator. It is also equipped with centering knobs, which helps users in adjusting the filament center to make sure that there is sufficient and uniform fluorescent illumination.

Technical Specification


1

Head

Universal Infinity Corrected Optical System
Seidentopf Trinocular head with inverted image, inclined at 30°
Interpupilary Distance adjustment range : 54-75mm
Diopter adjustment : ±5°
High Eye-Point WF PL 10X/22mm

2

Nosepiece

Quintuple with slot for Analyzer, Backward tilted, click-stop Revolving mechanism with multiple ball bearing
Infinite Plan Semi-Apochromatic Fluorescence Objectives - 4x, 10x, 20x(Spring), 40x(Spring) & 100x(Spring, Oil)
Anti-fungal, Parfocal, Parcentric, Colour-coded

3

Stage

Anti-Corrosive & Anti-Friction Ceramic coated Double Layer Rackless Mechanical Stage
Double Slide Holder
Stage Size : 150 x 162mm
Movement range : 76mm(x-axis) x 50mm(y-axis)
Movement controlled with a long right hand stage handle

4

Focusing

Stage height movement with Coaxial coarse and Fine Focusing Adjustment knob, by Rack and Pinion mechanism
Fine focusing interval 0.002mm
Coarse range 30mm

5

Condenser

Swing Type 0.9 N.A. Abbe Condenser with Apperture Iris Diaphragmand position guide markings for each objective

6

Transmitted Illumination

External Illumination, Kohler illuminator system
Aspherical collector, Halogen Illumination 6V/30W with digital light control
Field Diaphragm
100V – 240V universal power supply

7

Reflected Illumination

Turret Type Fluorescent Attachment with position for Six Excitation Filters
Fluorescence Filters:
- Ultraviolet: BP330-385nm, DM400nm, BA420nm
- Violet: BP400-410nm, DM455nm, BA455nm
- Blue: BP460-495nm, DM505nm, BA510-550nm
- Green: BP510-550nm, DM570nm, BA590nm
Reflected Light source:Epi-Illuminator 100W Mercury Lamp House
Fluorescence illuminator has adjustable iris field diaphragm and aperture diaphragm
Power Supply:Mercury Lamp Power House, Digital Display

8

Filters

LBD

9

Options in-lieu of standard specification

» Seidentopf Trinocular head with erect image
» Quadruple nosepiece
» 187×166mm double layer mechnical stage

9

CS-U7000F can be upgraded for the following applications:

» Micro-photography
» Phase Contrast Application
» Dark Field Application
» Simple Polarization Attachment
