Upright Biological Research Microscope

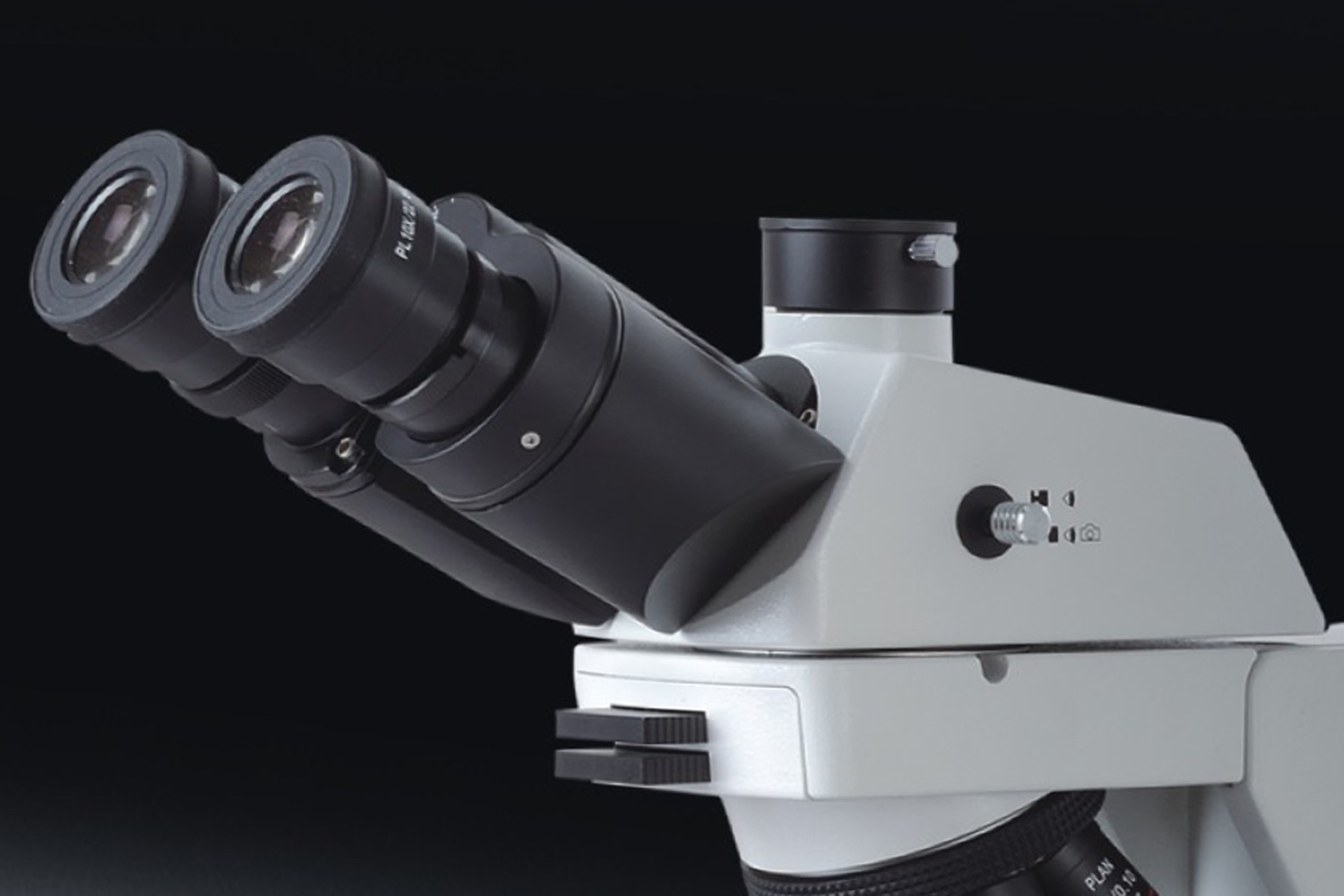

Viewing head with multi-splitting ratio
CS-U7000 viewing head is designed with multiple options for splitting ratio, with wide beam imaging system and 22mm super wide field of view is available. Trinocular head with inverted image, splitting ratio Binocular:Trinocular = 100:0 or 0:100. Trinocular head with erect image, splitting ratio Binocular:Trinocular = 100:0 or 0:100.
High eye-point ultra wide field plan eyepieces
Breaking through 20mm conventional field of view, reaching to 22mm, much smoother and wide field of view, is helpful to improve the work efficiency. Larger adjustable range of diopter from -5 to +5, meets more demands of different users.
Nosepiece
Quadruple / Quintuple nosepiece for option with slot for Analyzer.
Professional L-plan objectives
LPLAN series Infinity Plan Achromatic objectives, designed for observing biological samples, present sharp and contrast images and equally well even for fluorescence observation.
Plan-PH series Infinity Plan Phase Contrast objectives, improve clarity and contrast, especially suitable to observe colorless or light-colored cells.

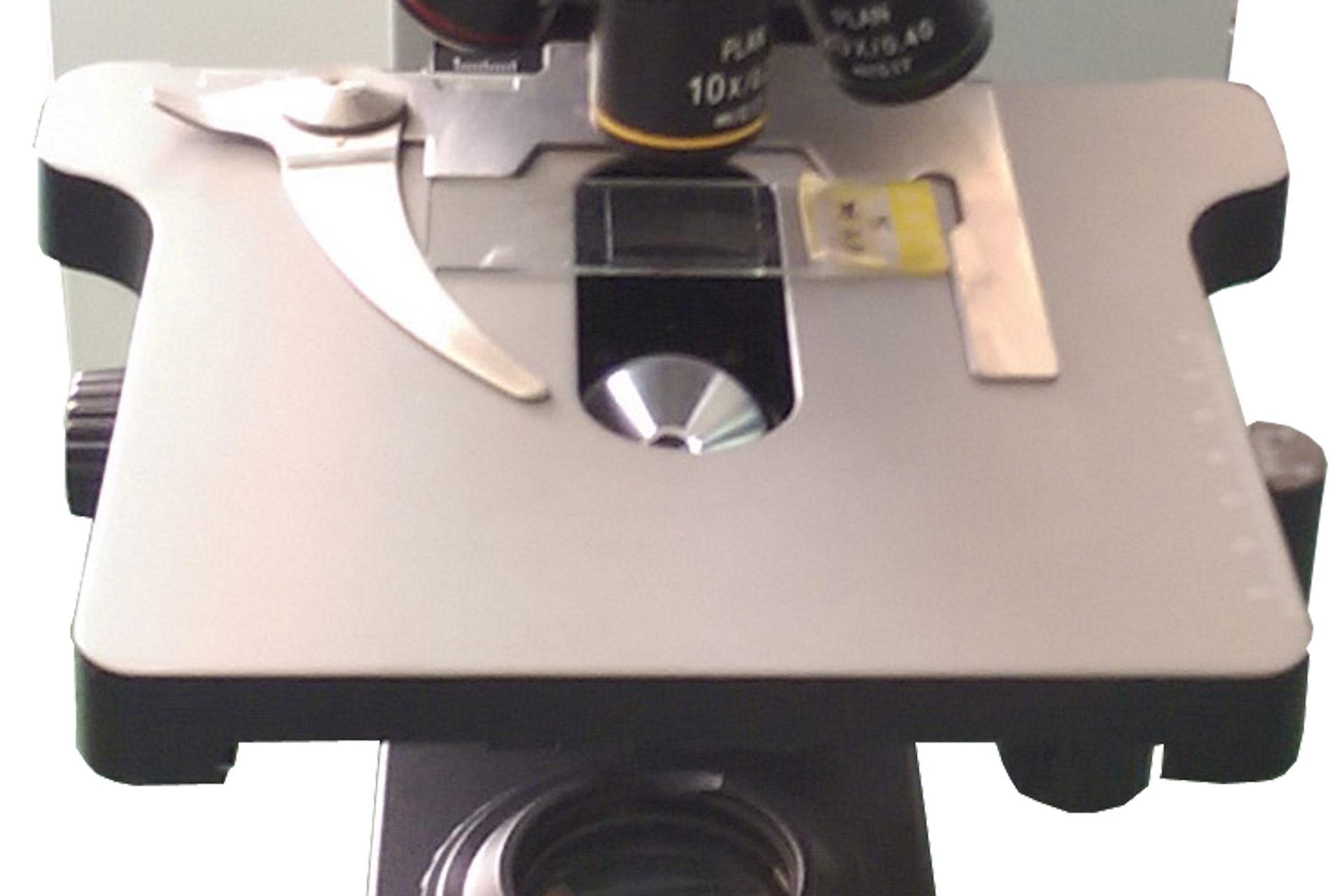

In order to correct the shortcoming of horizon guide rail, new stage is designed with double-way linear driving mechanism. This change protects the stage from overload at the end of both rails, improves the rigidity and performance of the stage.
150×162mm double layer mechnical stage (surface with ceramic treatment); with X-asis rackless, moving range 76X50mm, precision:0.1mm.
Optionally available is, 187×166mm double layer mechnical stage; with X-asis & Y-asis rackless, moving range 80X50mm, precision:0.1mm.

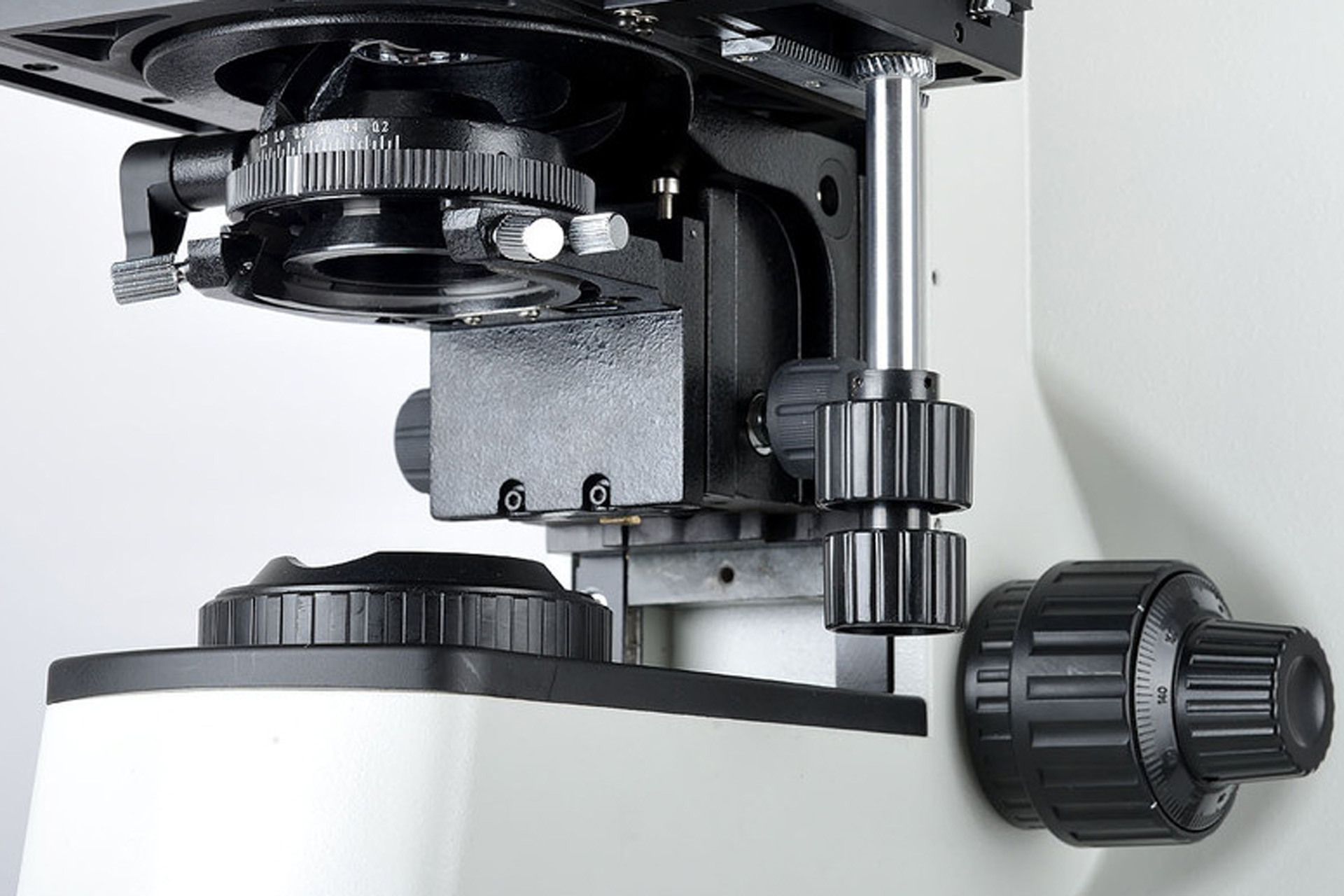

Condenser
NA1.2/0.22 swing out achromatic condenser with marked iris diaphragm and aperture scale, provides sufficient and uniform light for full-field observation in different magnifications.
Light Source
Koehler Illumination System. 6V/30W external halogen lamp house provides transmitted light. Illuminator center is preset, hence no adjustment needed after replacing the lamp. Built-in 100-240V wide voltage transformer. Intensity adjustable by digital set and reset. Optionally 3W LED Lamp, external illumination is also available.
Universal Infinity Corrected Optical System
Seidentopf Trinocular head with inverted image, inclined at 30°
Interpupilary Distance adjustment range : 54-75mm
Diopter adjustment : ±5°
High Eye-Point WF PL 10X/22mm
Quintuple with slot for Analyzer, Backward tilted, click-stop
Revolving mechanism with multiple ball bearing
Infinite Plan Achromatic Objectives
Anti-fungal, Parfocal, Parcentric, Colour-coded 4x, 10x, 20x(Spring), 40x(Spring) & 100x(Spring, Oil)
Anti-Corrosive & Anti-Friction Ceramic coated Double Layer Rackless Mechanical Stage
Double Slide Holder
Stage Size : 150 x 162mm
Movement range : 76mm(x-axis) x 50mm(y-axis)
Movement controlled with a long right hand stage handle
Stage height movement with Coaxial coarse and Fine Focusing Adjustment knob, by Rack and Pinion mechanism
Fine focusing interval 0.002mm
Coarse range 30mm
Swing Type 0.9 N.A. Abbe Condenser with Apperture Iris Diaphragmand position guide markings for each objective
External Illumination, Kohler illuminator system
Aspherical collector, Halogen Illumination 6V/30W with digital light control
Field Diaphragm
100V – 240V universal power supply
LBD
» Seidentopf Trinocular head with erect image
» Quadruple nosepiece
» 187×166mm double layer mechnical stage
» Plan Semi-Apochromatic Objectives - 4x, 10x, 20x(Spring), 40x(Spring) & 100x(Spring, Oil)
» Micro-photography
» Phase Contrast Application
» Dark Field Application
» Simple Polarization Attachment
» Fluorescence Application
» Multi-Viewing Attachment
