CS-U6000FL

CS-U6000FL, is a professional upright fluorescence biological microscope, designed for Epi-fluorescence and brightfield imaging with optional Phase-Contrast, Darkfield, and Polarizing imaging. It has Infinity Color Corrected Optical System with upgraded Koehler Illumination System. This single-band LED fluorescence microscope makes diagnosis simple and easy. With the LED illumination, there is no need to wait for warm up, cool down, or bulb changes. Switches between bright-field and fluorescence in a matter of seconds. The LED fluorescence illuminator has FITC/GFP filters. This microscope is ideal for tuberculosis diagnosis and other applications.

HEAD

Viewing head
Comfortable observation with compensation free trinocular head inclined at 30° and large viewing area with wide field eyepiece PL10x/22mm with diopter adjustment.
High eye-point ultra wide field plan eyepieces with Rotatable Eyepiece tube design
Interpupillary distance adjustment range is 50-75mm and the eyepiece tube can be rotated 360°. The eye-point would be 34mm higher through rotating the eyepiece tube when interpupillary distance is 65mm. The traditional technology (using eye- point raiser to increase observation height) is replaced.

NOSEPIECE & OBJECTIVES

Nosepiece

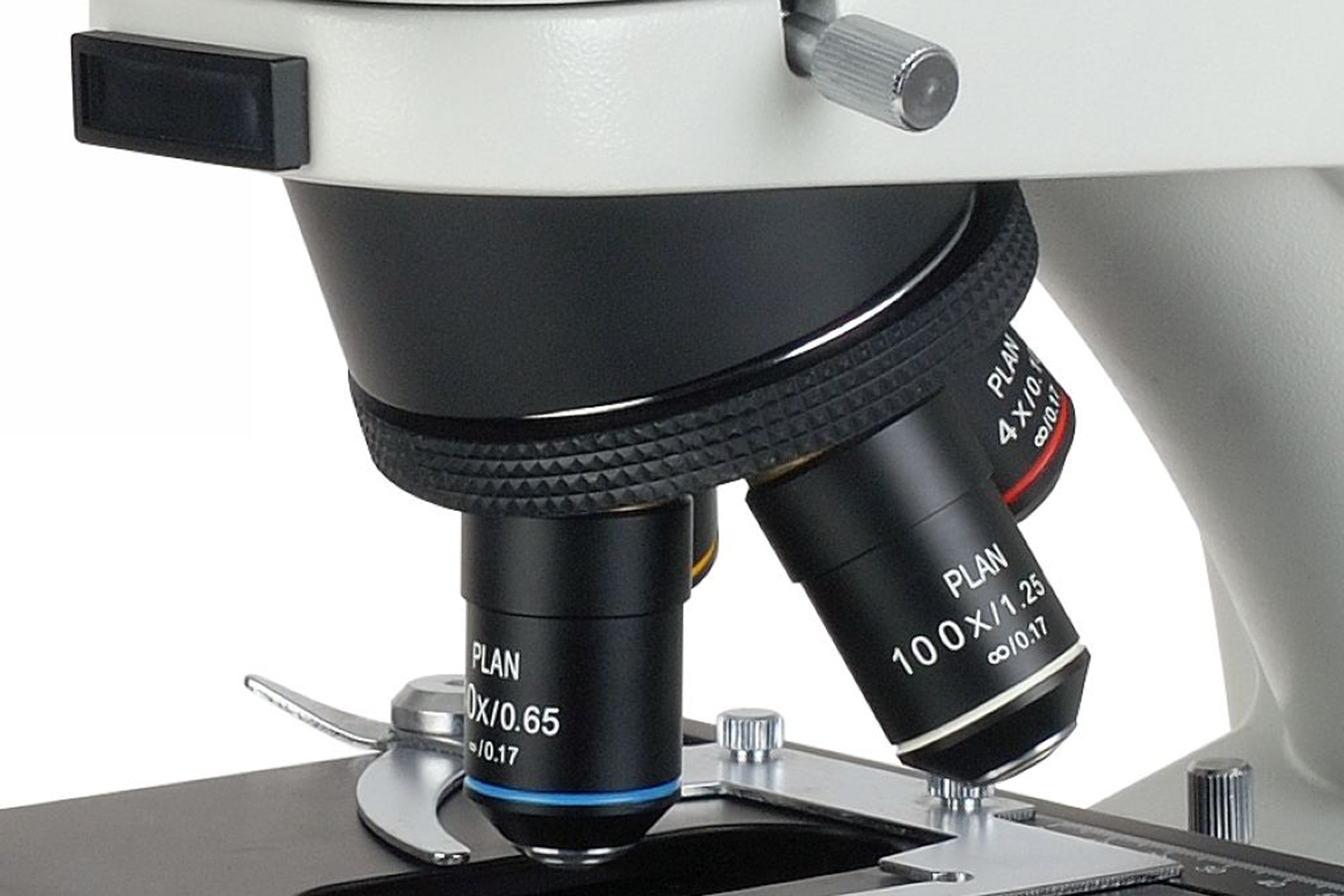

Quadruple / Quintuple nosepiece for option with slot for Analyzer.
Professional Infinite Plan objectives
LPLAN series Infinity Plan Achromatic objectives, designed for observing biological samples, present sharp and contrast images and equally well even for fluorescence observation. At the same time, the objectives are made of environment-friendly materials. The image is brighter and reverts to the natural color with the advanced multi-coating.
Plan-PH series Infinity Plan Phase Contrast objectives, improve clarity and contrast, especially suitable to observe colorless or light-colored cells.

STAGE

150×140mm double layer mechnical stage with a moving range 76X50mm, precision:0.1mm.

ILLUMINATION

Condenser
CS-U6000FL has Koehler Illuminatory Condenser with Apperture Iris Diaphragm and position guide markings for each objective. Two type of condenser option is available - One with turret type and other with socket for slider. In both cases, Phase Contrast and Dark-Field application is supported.
Light Source
High-powered single LED cold light illuminator It maintains constant color temperature and provides bright white back-ground without filter and hence it is the best choice of observation for bright-field and photography. The illuminator supplies stable brightness and temperature difference never occurs even while working for long time. Comparing with halogen lamp, LED has lower power dissipation. Plug-type light system is on the left side, different from traditional system, making replacement a child’s play. If required, It can be equipped with halogen illumination, 6V30W, in-lieu of LED illumination.

LED Fluorescence Attachment

Single wavelength variable intensity LED fluorescence illuminator, 470nm wavelength, suitable for FITC/GFP.
External Transformer DC power supply. It also has intensity control knob for convenient adjustment of fluorescence intensity.

Technical Specification

1

Head

Universal Infinity Corrected Optical System
Seidentopf Trinocular head with inverted image, inclined at 30°
Interpupilary Distance adjustment range : 54-75mm
Diopter adjustment : ±5°
High Eye-Point WF PL 10X/22mm

2

Nosepiece

Quintuple with slot for Analyzer, Backward tilted, click-stop Revolving mechanism with multiple ball bearing
Infinite Plan Achromatic Objectives - 4x, 10x, 20x(Spring), 40x(Spring) & 100x(Spring, Oil)
Anti-fungal, Parfocal, Parcentric, Colour-coded

3

Stage

Anti-Corrosive & Anti-Friction Double Layer Mechanical Stage
Double Slide Holder
Stage Size : 150 x 140mm
Movement range : 76mm(x-axis) x 50mm(y-axis)
Movement controlled with a long right hand stage handle

4

Focusing

Stage height movement with Coaxial coarse and Fine Focusing Adjustment knob, by Rack and Pinion mechanism
Fine focusing interval 0.002mm
Coarse range 30mm

5

Condenser

1.25 N.A. Koehler Illuminatory Condenser with Apperture Iris Diaphragm and position guide markings for each objective and also with socket for Phase Contrast and Dark-Field accessories

6

Transmitted Illumination

In-built transmitted Kohler illuminator system
Aspherical collector
3W LED Illumination with Adjustable Brightness
85V – 240V universal power supply

7

Reflected Illumination

LED reflection illumination
Single-band filter with corresponding LED module inside
Intensity adjustment knob
BF/FL switching knob
6V/2A DC Power supply with external transformer

8

Options in-lieu of standard specification

» Seidentopf Type Binocular head
» Quadruple nosepiece
» Halogen Illumination

9

CS-U6000FL can be upgraded for the following applications:

» Micro-photography
» Phase Contrast Application
» Dark Field Application
» Simple Polarization Attachment
» B1 Fluorescence module
» G1 Fluorescence module
» UV Fluorescence module
