CatScope : CS-U1000

Upright Biological Microscope

CS-U1000

CS-U1000 microscope are Finite Optical System with excellent optical quality and available in all three variants - Monocular, Binocular & Trinocular. Ergonomic design, sturdy structure, easy operation, makes it ideal for students.

CS-U1000

HEAD

Viewing head
Monocular head inclined at 30° and 360° rotatable. Large viewing area with wide field eyepiece WF10x/18mm. Binocular head is also available with wide interpupillary range of 55-75mm and diopter adjustment for eyepiece. Trinocular head alos available.

CS-U1000

NOSEPIECE & OBJECTIVES

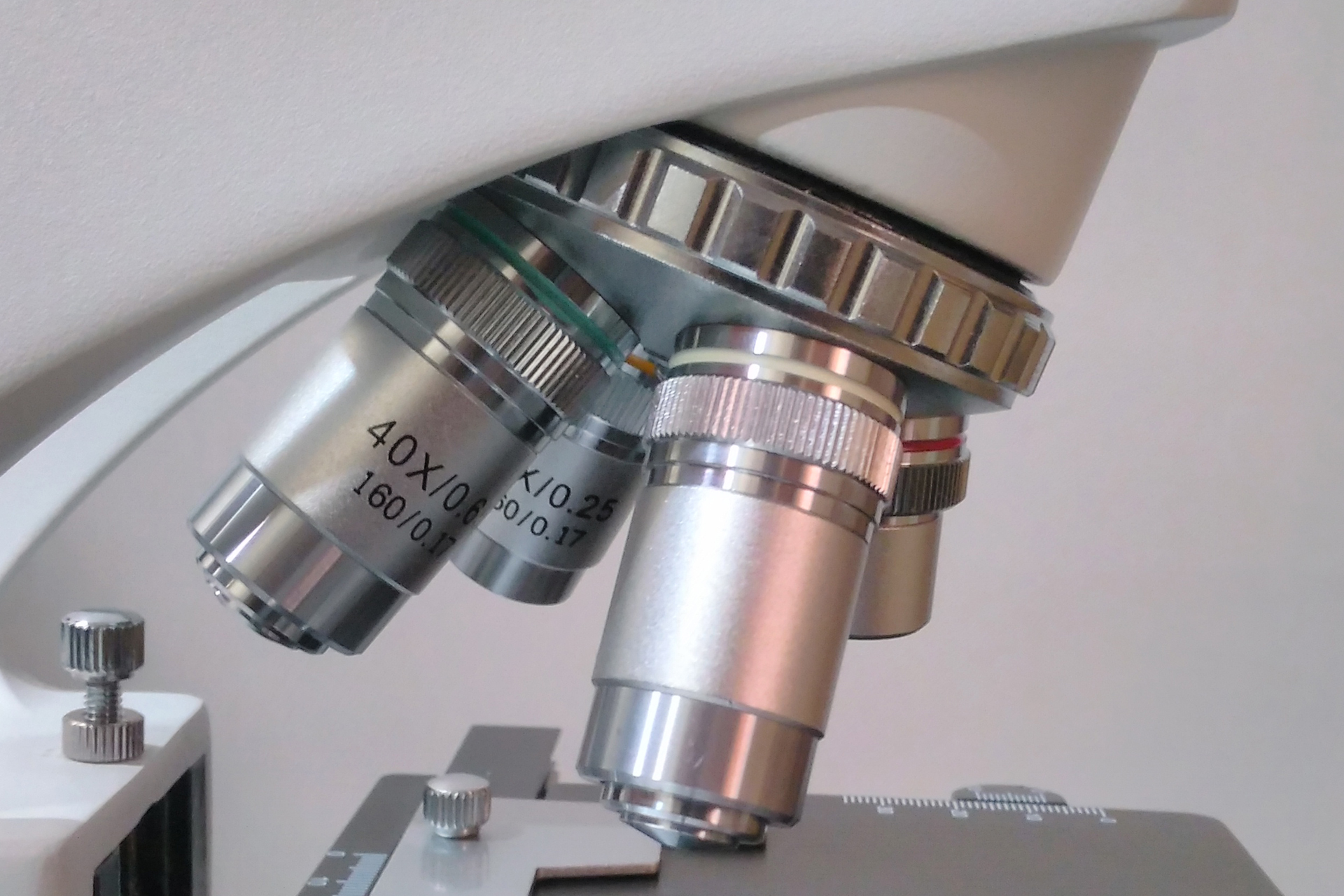

Nosepiece
Inward facing quadruple nosepiece with Achromatic Objectives.

CS-U1000

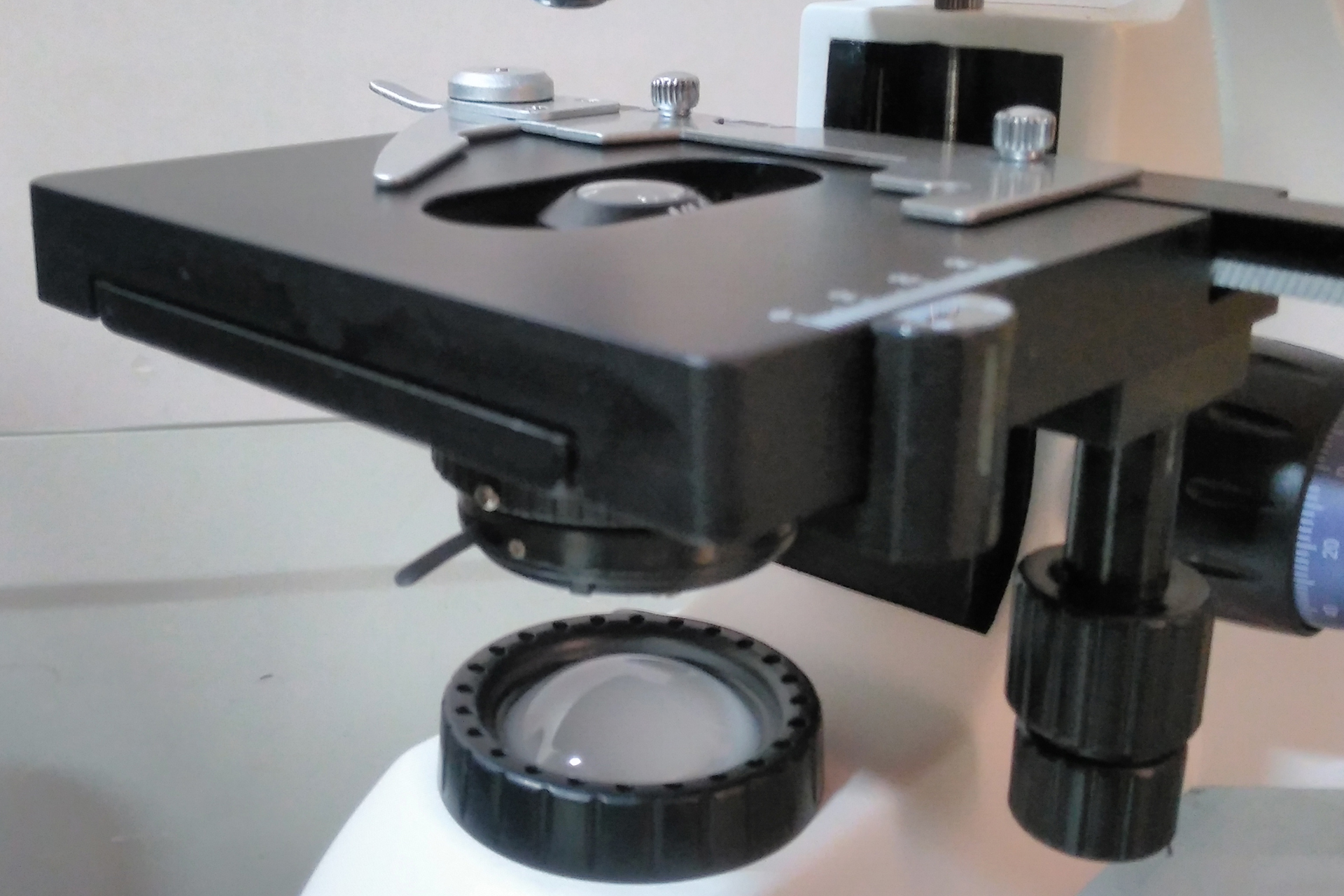

STAGE

Square type double layer mechanical stage 125x110mm, with a moving range of 75x50mm, controlled with a long right hand stage handle.

CS-U1000

ILLUMINATION

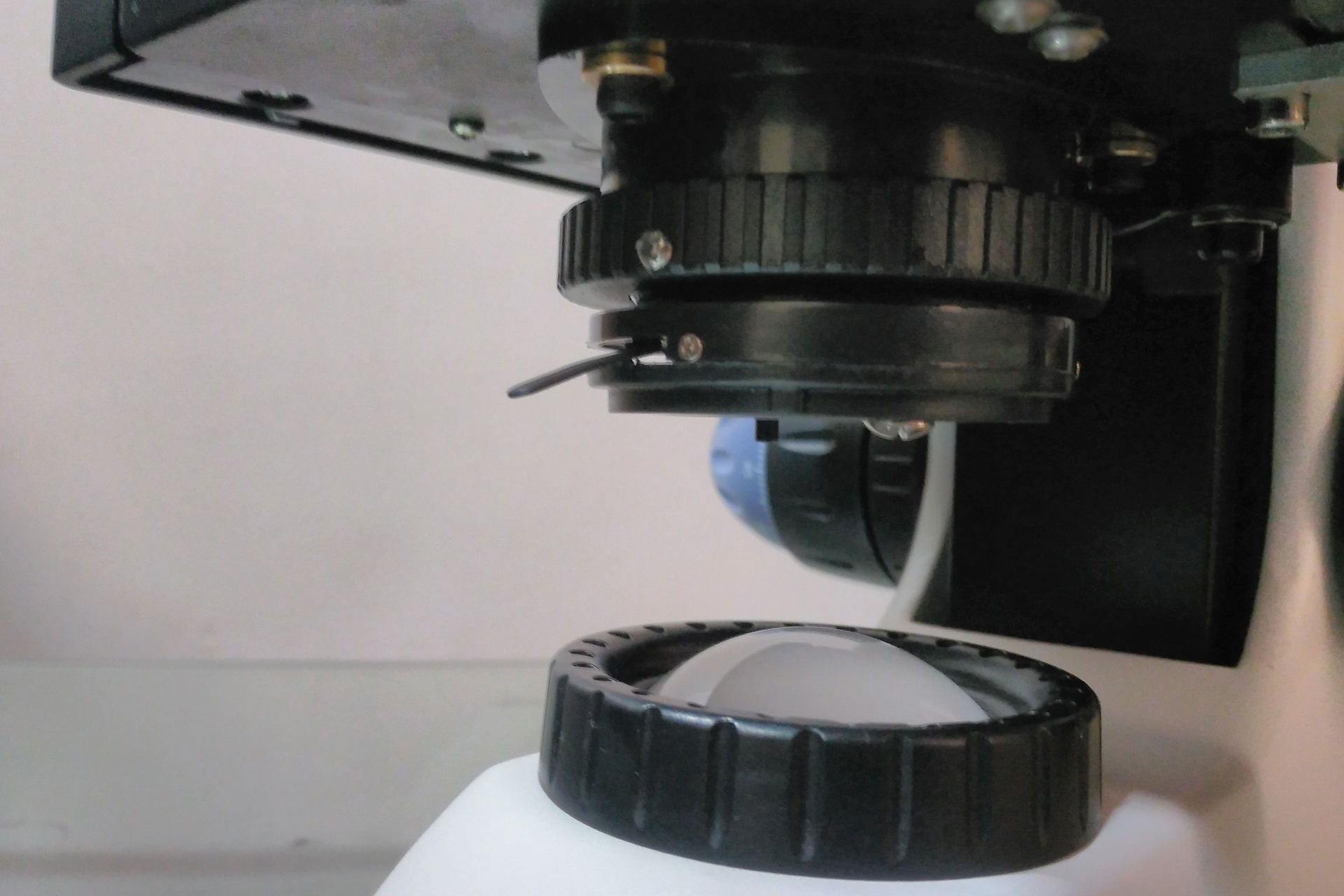

Condenser
1.25 NA Abbe Type rotatable condenser. Illuminator is provided with field diaphragm.
Light Source
LED lamp house provides transmitted light. Illuminator center is preset, hence no adjustment needed. Built-in 100-240V wide voltage transformer.

Technical Specification


1

Head

Finite Optical System
Monocular Head inclined at 30° and 360° rotatable
Eye piece WF 10X/18mm

2

Nosepiece

Quadruple, Inward tilted, click-stop Revolving mechanism with multiple ball bearing Nosepiece with elastic grip-ring
Achromatic Objectives
Anti-fungal, Parfocal, Parcentric, Colour-coded 4x, 10x, 40x(Spring) & 100x(Spring, Oil)

3

Stage

Double Layer Mechanical Stage
Double Slide Holder
Stage Size : 125 x 110mm
Movement range : 75mm(x-axis) x 50mm(y-axis)
Movement controlled with a right hand stage handle

4

Focusing

Stage height movement with Coaxial coarse and Fine Focusing Adjustment knob, by Rack and Pinion mechanism
Fine focusing interval 0.002mm
Coarse stroke 36mm per rotation

5

Condenser

1.25 N.A. rotatable Abbe Condenser with Apperture Iris Diaphragm

6

Illumination

Aspherical collector
LED Illumination with Adjustable Brightness 85V – 240V universal power supply

7

Options in-lieu of standard specification

» Seidentopf Binocular head
» Seidentopf Trinocular head
» Semi-Plan Achromatic Objectives

8

CS-U1000 can be upgraded for the following applications:

» Micro-photography
