CS-U10

CS-U10 microscope are Finite Optical System with excellent optical quality. Ergonomic design, sturdy structure, easy operation, makes it ideal for students.

HEAD

Viewing head

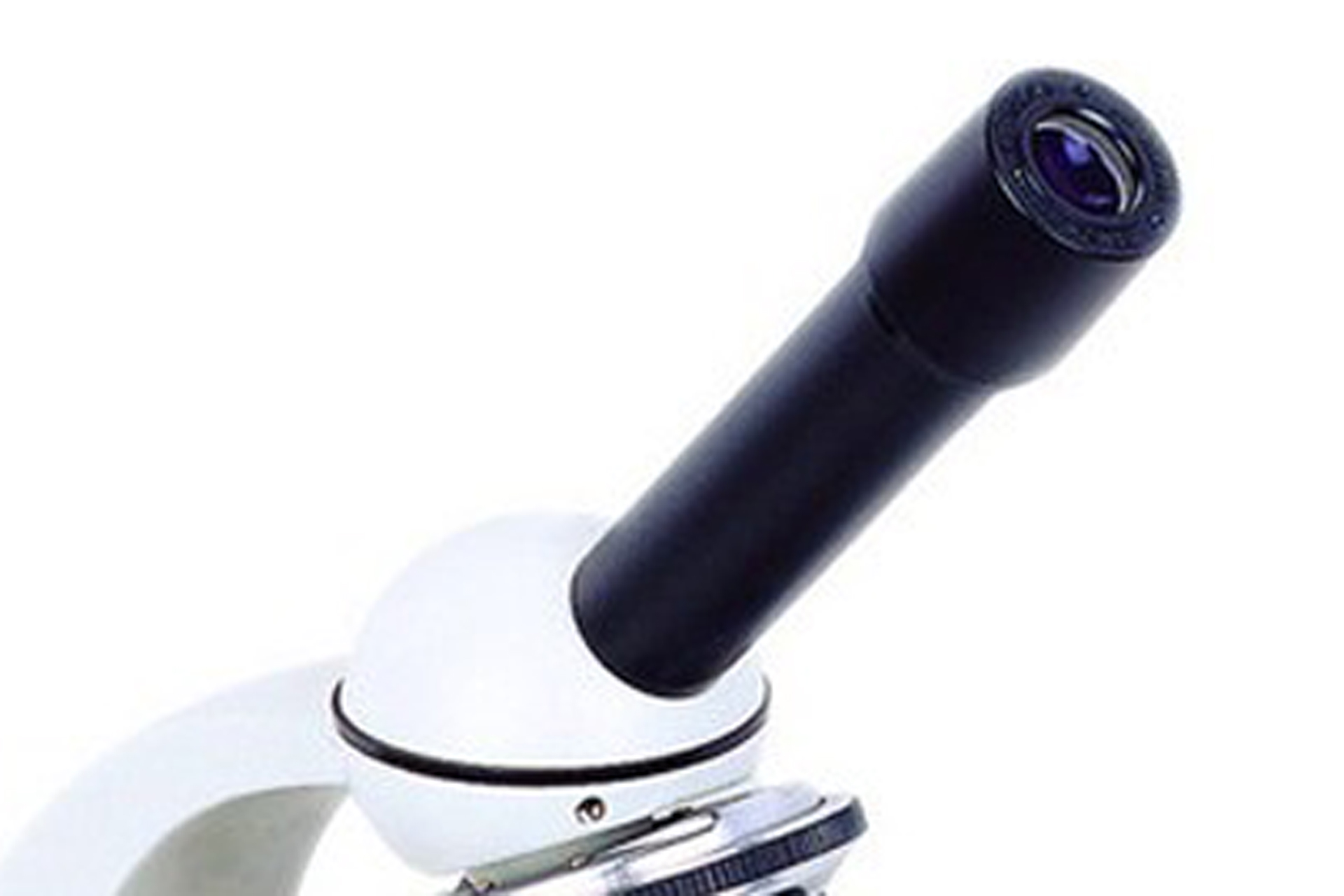

Monocular head inclined at 45°. Large viewing area with wide field eyepiece WF10x/18mm. Binocular head is also available with wide interpupillary range of 48-75mm and diopter adjustment for eyepiece

NOSEPIECE & OBJECTIVES

Nosepiece

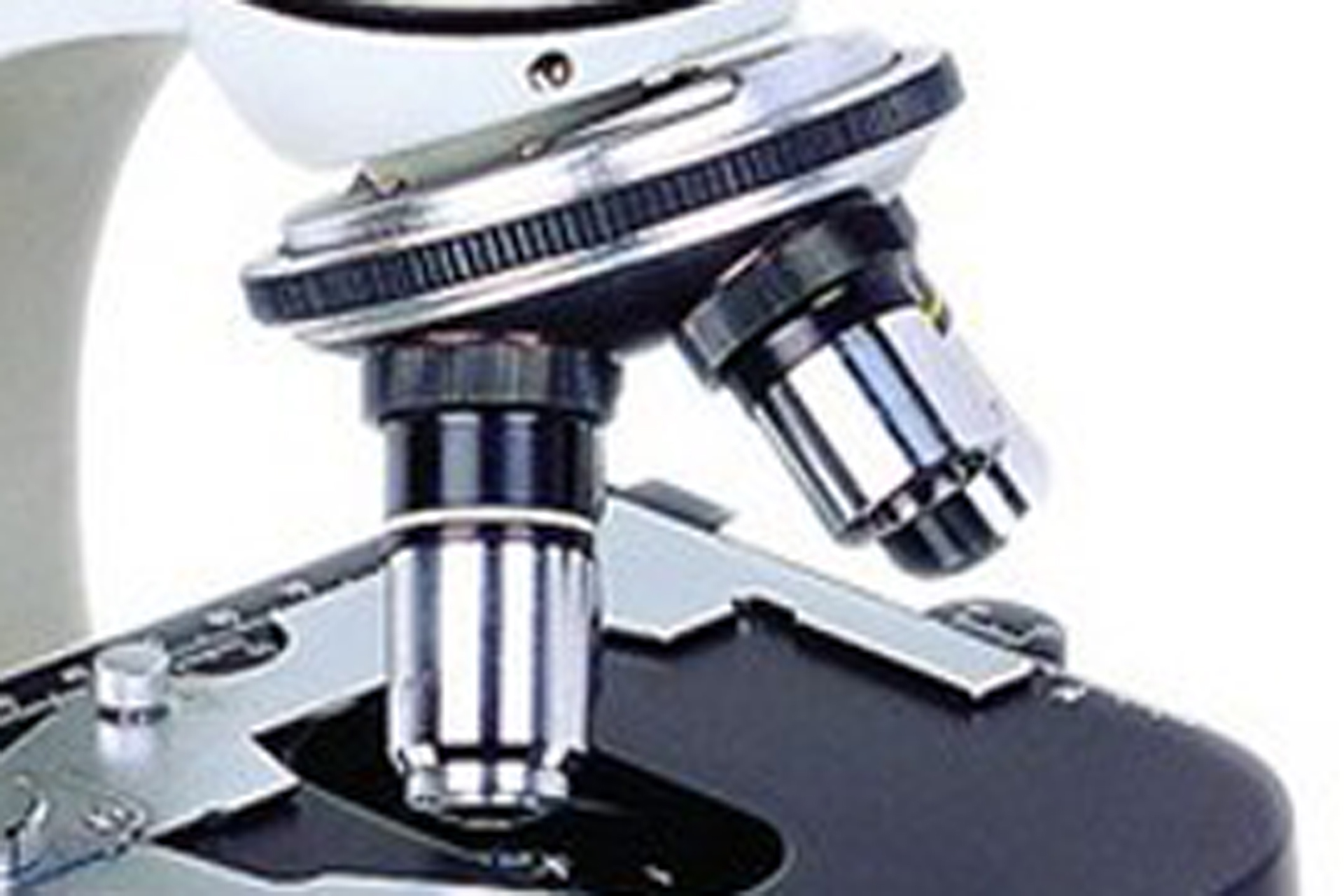

Forwardward facing quadruple nosepiece with Achromatic Objectives.

STAGE

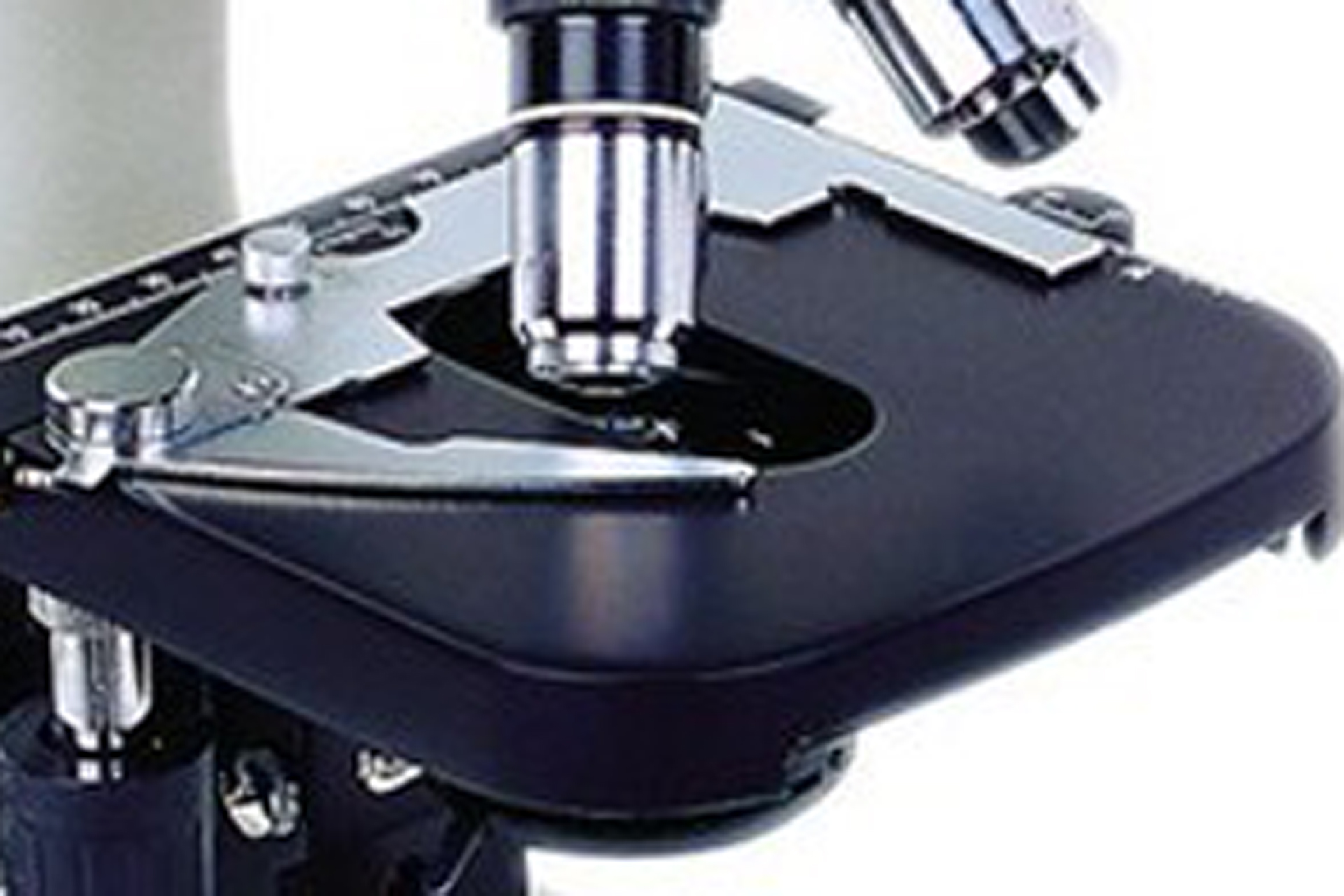

Square type double layer mechanical stage 120x120mm, with a moving range of 60x30mm.

ILLUMINATION

Condenser
Abbe Type condenser is marked with positions for respective objectives. Illuminator is provided with field diaphragm.
Light Source

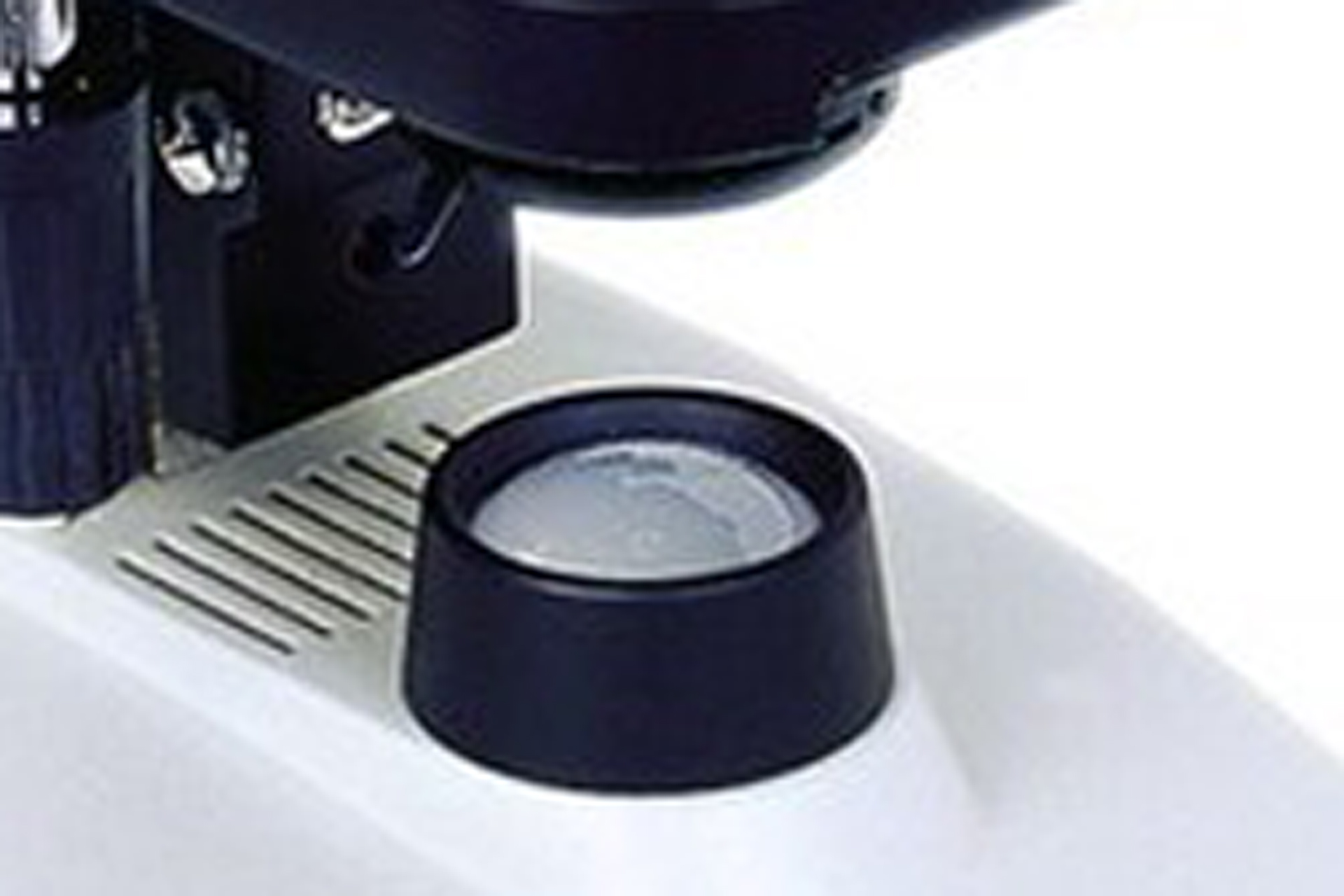

LED lamp house provides transmitted light. Illuminator center is preset, hence no adjustment needed. Built-in 100-240V wide voltage transformer.

Technical Specification

1

Head

Finite Optical System
Monocular Head inclined at 45° and 360° rotatable
Eye piece WF 10X/18mm

2

Nosepiece

Quadruple, Forward tilted, click-stop Revolving mechanism with multiple ball bearing Nosepiece with elastic grip-ring
Achromatic Objectives
Anti-fungal, Parfocal, Parcentric, Colour-coded 4x, 10x, 40x(Spring) & 100x(Spring, Oil)

3

Stage

Double Layer Mechanical Stage
Double Slide Holder
Stage Size : 120 x 120mm
Movement range : 60mm(x-axis) x 30mm(y-axis)
Movement controlled with a left hand stage handle

4

Focusing

Stage height movement with Coaxial coarse and Fine Focusing Adjustment knob, by Rack and Pinion mechanism
Fine focusing interval 0.002mm
Coarse stroke 30mm per rotation
Fine stroke 0.2mm per rotation

5

Condenser

1.25 N.A. Abbe Condenser with Apperture Iris Diaphragm

6

Illumination

Aspherical collector
LED Illumination with Adjustable Brightness 85V – 240V universal power supply

7

Options in-lieu of standard specification

» Seidentopf Binocular head
» Interpupilary Distance adjustment range : 48-75mm
» Diopter adjustment : ±5°
» 6V/15W Halogen Illumination

8

CS-U10 can be upgraded for the following applications:

» Micro-photography
