CatScope : CS-P8000R

Upright Polarizing Research Microscope

CS-P8000R

CS-P8000R trinocular polarizing microscope with Transmitted and Reflected Illumination, is outfitted with high quality strain-free infinity plan objectives, extreme widefield eyepieces, and a powerful 24V/100W transmitted as well as reflected halogen lamp. It is equipped with centerable bertrand lens, polarizer/analyzer, three compensators (tint plate, quarter-wave plate, and quartz wedge), centerable and rotatable stage, mechanical stage attachment and NA 0.9/0.25 flip-top condenser.

CS-P8000R

HEAD

Viewing head
Comfortable observation with compensation free trinocular head inclined at 30°, suitable for observer, with wide interpupillary range of 48-75mm.
High eye-point ultra wide field plan eyepieces
Breaking through 20mm conventional field of view, reaching to 22mm, much smoother and wide field of view, is helpful to improve the work efficiency. Larger adjustable range of diopter from -5 to +5, meets more demands of different users.

CS-P8000R

NOSEPIECE & OBJECTIVES

Nosepiece
Large operating space with backward quintuple nosepiece and option with slot for Analyzer.

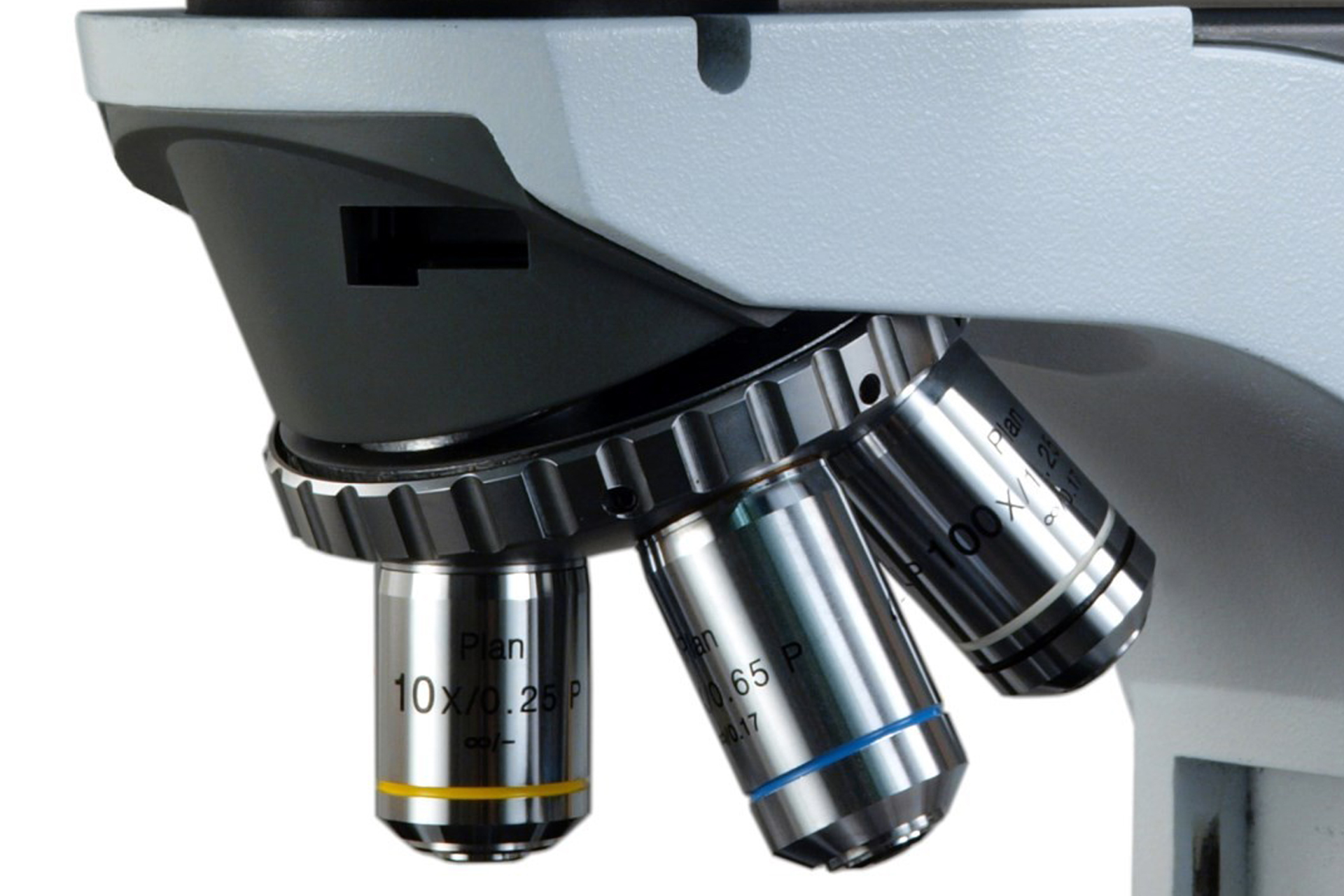

Professional Infinity plan objectives
Infinity plan stress-free objectives, is the best choice for polarizing observation. Adopting crystal optics materials, perfectly corrects all kinds of chromatic aberrations. Large numerical aperture design presents high resolution, high contrast micro-images. The image is clear and bright.

CS-P8000R

STAGE

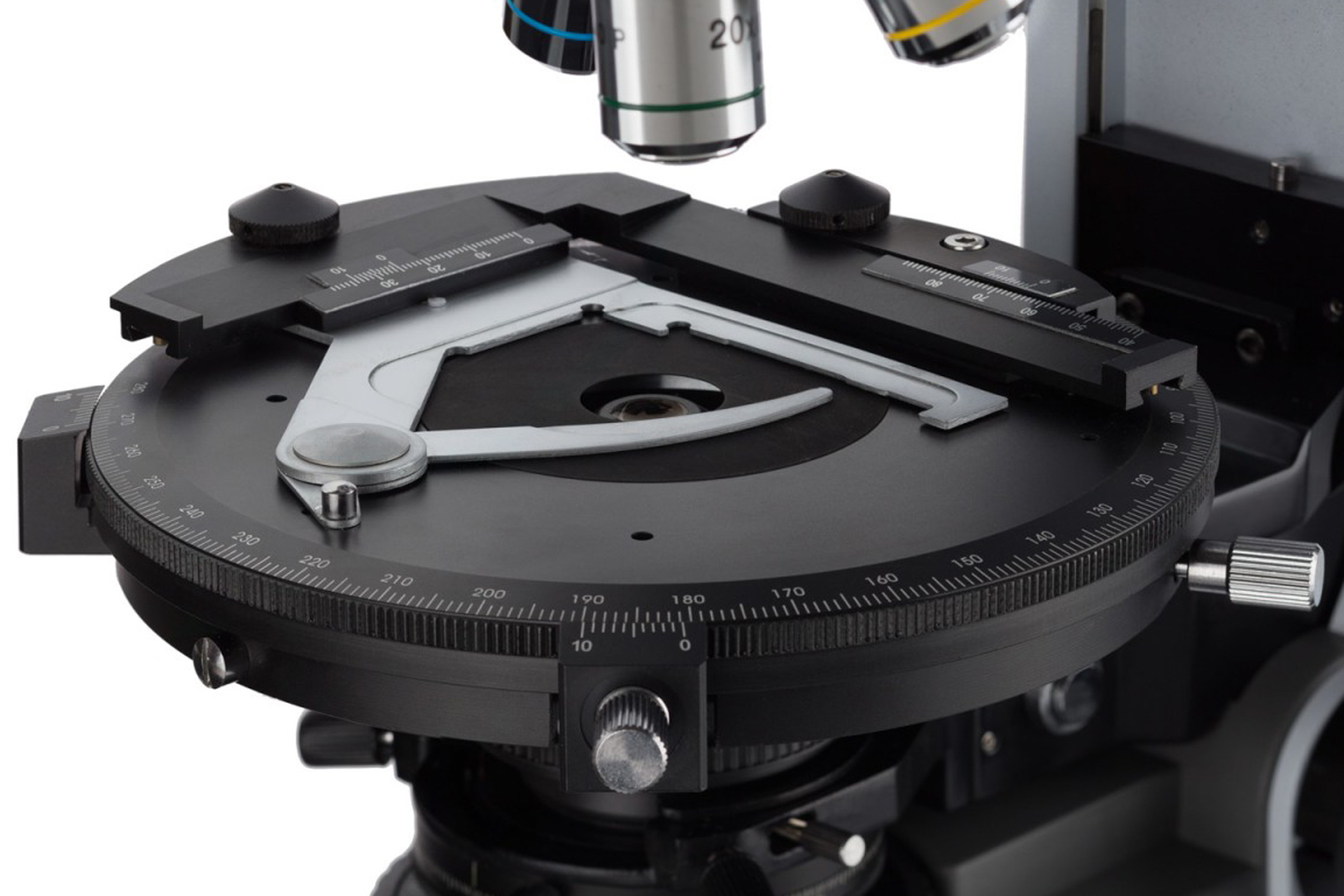

The graduated, big circular metal stage provides 360° of rotation for birefringence-testing, as well as a mechanical caliper for X-Y translation, can be positioned with lock screw. The stage is anti-corrosive and anti-friction as it is coated with graphite.
Attachable Mechanical Stage with amoving range of 30mm x 40mm.

CS-P8000R

ILLUMINATION

Condenser

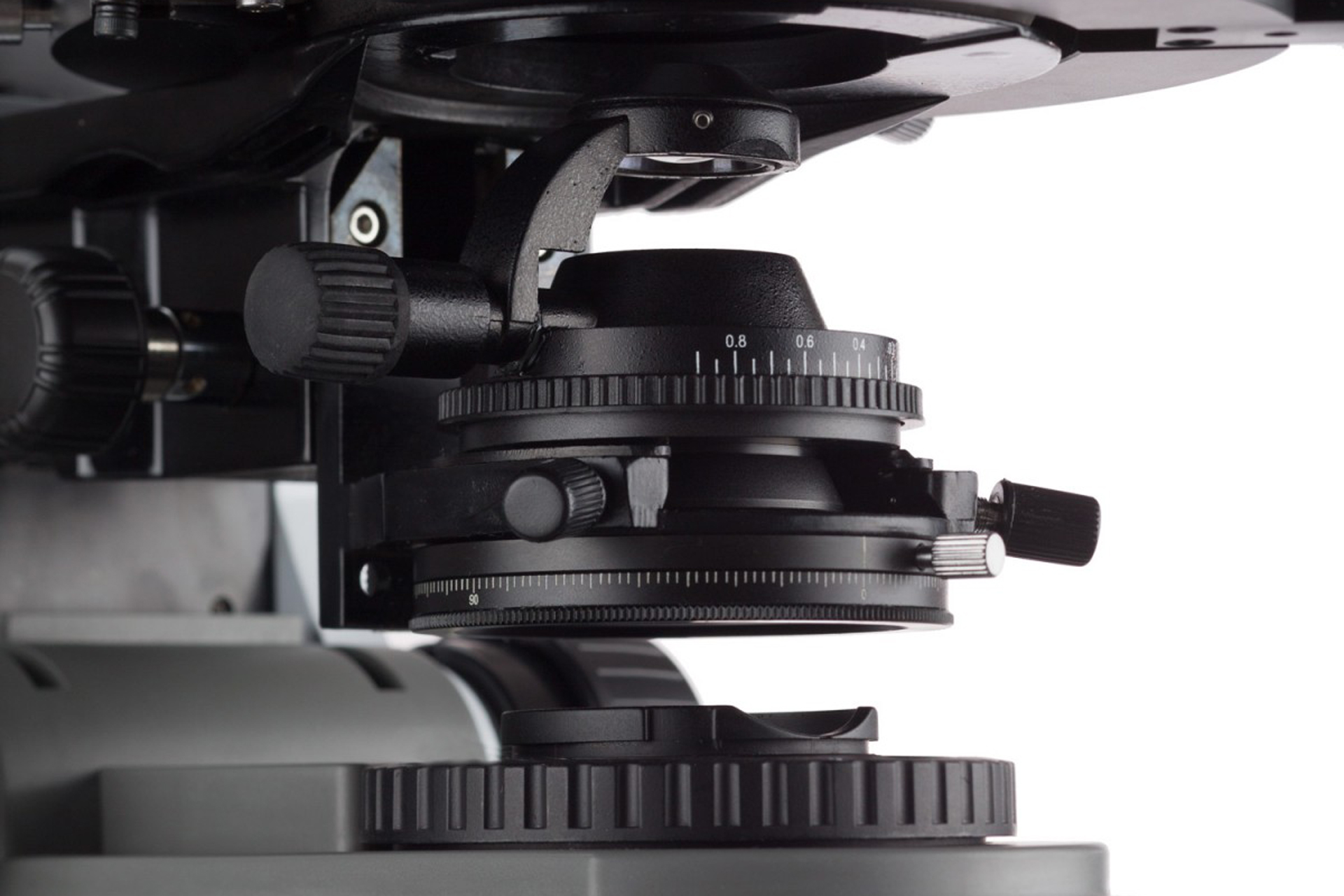

N.A.0.9 Swing-out achromatic condenser, center adjustable, adjustable aperture diaphragm with scale, provides ample uniform light and clear image for observation at different magnification. Pluggable 360° rotatable polarizer is removable for ordinary observation and easy to be replaced.
Light Source
Koehler Illumination System. External Power supply. 24V/100W external halogen lamp house provides transmitted light. Illuminator center is preset, hence no adjustment needed after replacing the lamp. Built-in 100-240V wide voltage transformer. Intensity adjustable.

CS-P8000R

INTERMEDIATE TUBE

Analyzer & Compensator

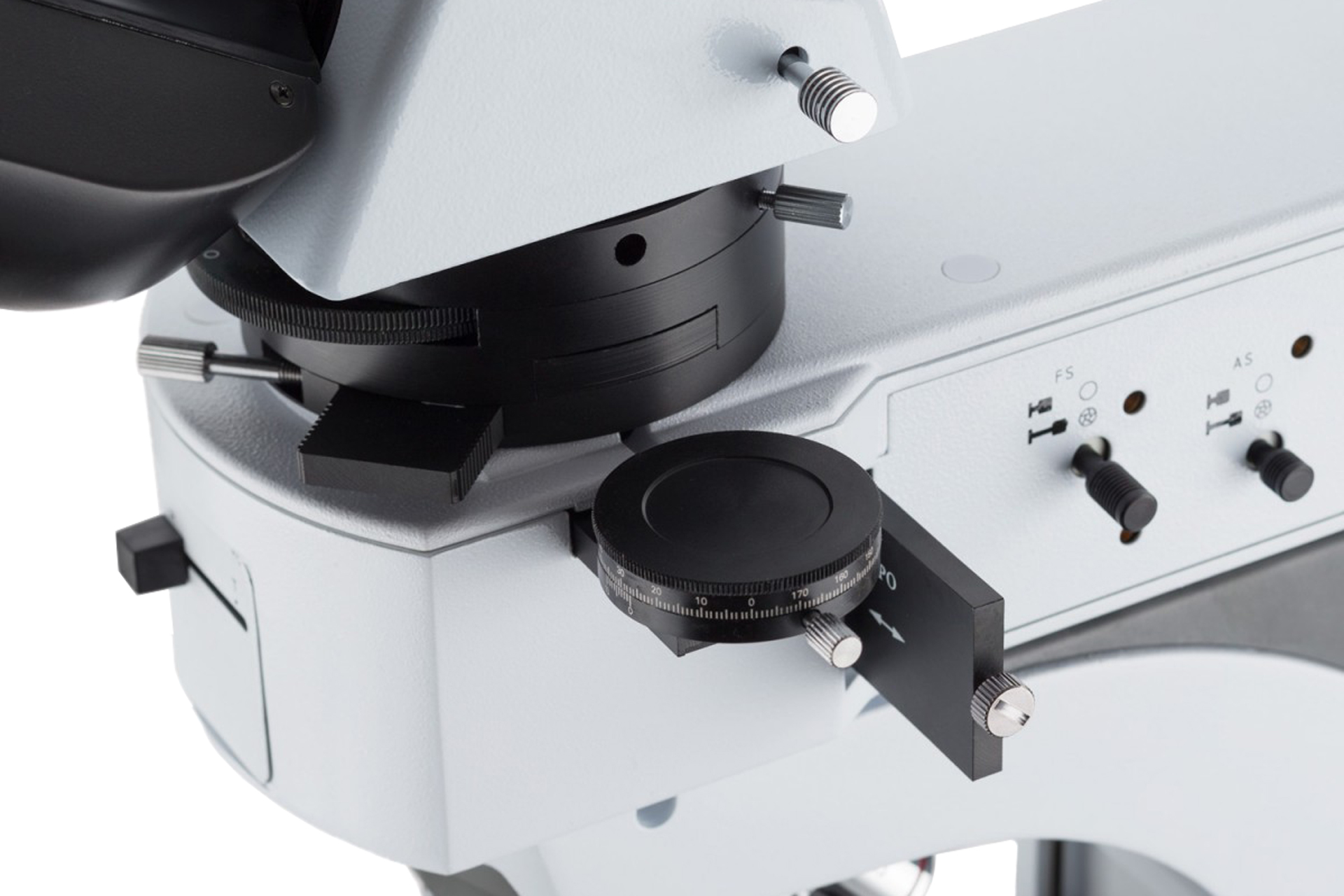

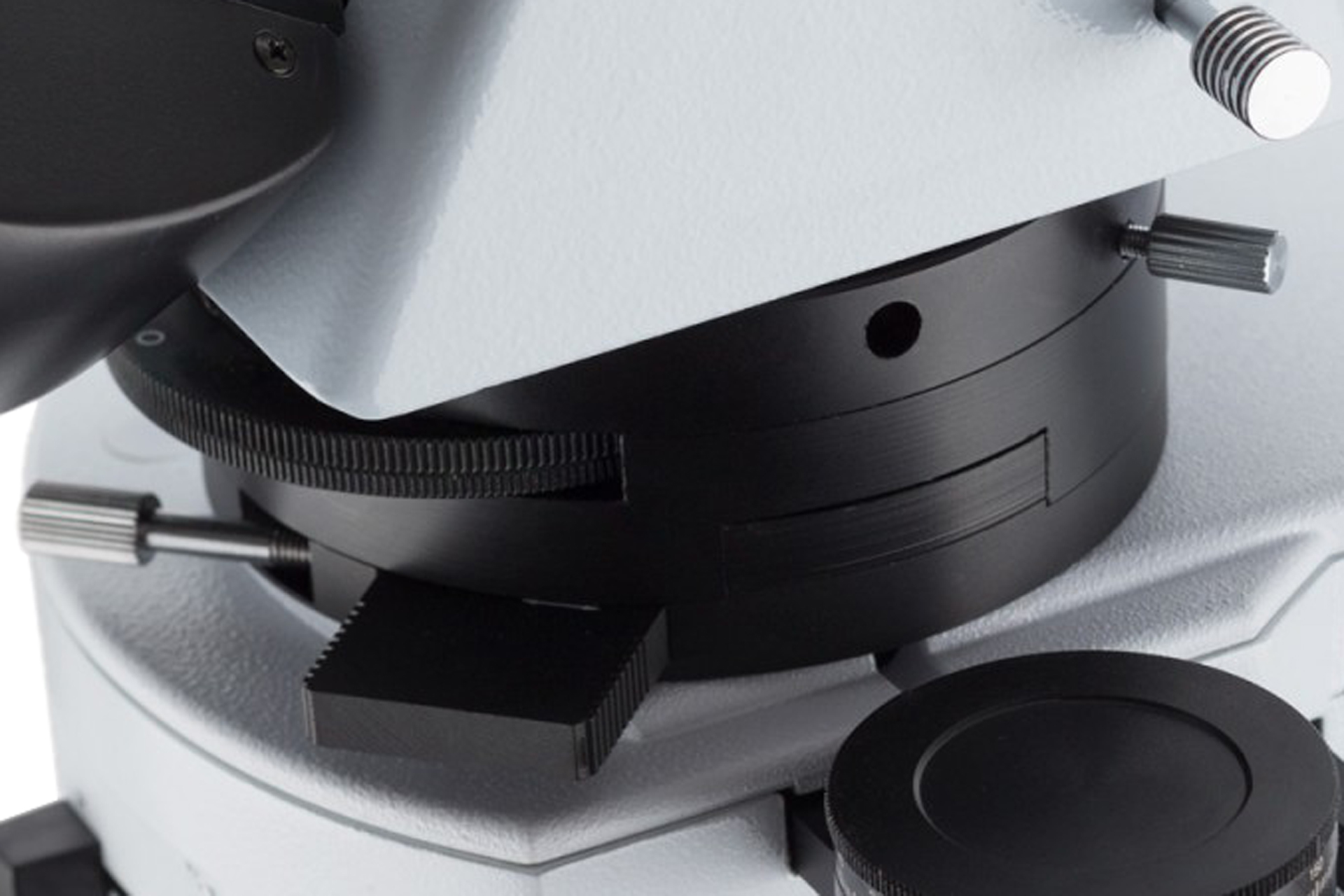

Intermediate tube holds bertrand lens with rotating switch, pluggable analyzer rotates 360° with 1° increments and Minimum scale reading of 0.1° (Vernier scale). Slots for compensators: Gypsum full λ plate, Mica 1/4λ plate and Quartz Wedge.
The addition of a Bertrand lens allows easy viewing of conoscopic interference patterns. The analyzer features a full-range dial for adjustable cross-polarization.

CS-P8000R

CONOSCOPIC ATTACHMENT

Switch between orthoscopic and conoscopic observation with adjustable Bertrand lens position and Fixed Polarizer (Slider).
Light Source
Koehler Illumination System. External Power supply. 24V/100W external halogen lamp house provides transmitted light. Illuminator center is preset, hence no adjustment needed after replacing the lamp. Built-in 100-240V wide voltage transformer. Intensity adjustable.

Technical Specification


1

Head

Universal Infinity Corrected Optical System
Seidentopf Trinocular head with inverted image, inclined at 30°
Interpupilary Distance adjustment range : 48-75mm
Diopter adjustment : ±5°
Extra Wide Field WF 10X/22mm
Plan eyepiece with scale of crosshair
Plan eyepiece with cross
Plan eyepiece with gridding

2

Nosepiece

Quintuple with slot, Backward tilted, click-stop Revolving mechanism with multiple ball bearing
Stress-Free Infinite Plan Achromatic Objectives
Anti-fungal, Parfocal, Parcentric, Colour-coded
5X/0.12/∞/- WD 15.5mm
10X/0.25/∞/- WD 10.0mm
50X/0.75/∞/0 WD 0.32mm (Spring)
100X/0.8/∞/0 WD 2mm (Spring)

3

Stage

360° Rotatable round stage with a diameter of 170mm, Center adjustable
360° scale, Minimum divison 1°,
Minimum reading 6 by means of vernier scale
45° Click stop knob
Attachable Mechanical Stage with moving range of 30mmx40mm

4

Focusing

Stage height movement with Coaxial coarse and Fine Focusing Adjustment knob, by Rack and Pinion mechanism
Fine focusing interval 0.001mm
Coarse stroke 37.7mm per rotation
Fine stroke 0.1mm per rotation
Moving range 32mm

5

Condenser

Swing Type 0.9/0.25 N.A. Abbe Condenser with Apperture Iris Diaphragm and position guide markings for each objective
Pluggable, 360° rotatable 0° position adjustable

6

Transmitted Illumination

External Illumination, Kohler illuminator system
Aspherical collector, Halogen Illumination 24V/100W, Brightness adjustable
Field Diaphragm
85V – 250V universal power supply

7

Analyzer

Slide in and out of the light path, 360° dial rotation Minimum scale reading: 0.1° (Vernier scale)

8

Optical Compensator

First-order red plate (Gypsum λ)
Guarter-wave plate (Mica 1/4λ)
Quartz wedge (I-IV)

9

Bertrand Lens

In the intermediate attachment, switch in and out of the light path, capable of focusing and centering

10

Color Filters

Transmitted : Blue
Reflected : Blue, Green, Yellow, White

11

Conoscopic Attachment

Switch between orthoscopic and conoscopic observation
Fixed Polarizer
External Illumination, Kohler illuminator system
Aspherical collector, Halogen Illumination 24V/100W, Brightness adjustable
Field Diaphragm
85V – 250V universal power supply

12

Options in-lieu of standard specification

Ergonomic tiltable Binocular/Triocular head
Quadruple Nosepiece

13

CS-P8000R can be upgraded for the following applications:

» Stress-Free Infinity Plan Achromatic Objective
- 20X/0.40/∞/0 WD 5.8mm
- 40X/0.65/∞/0.17, WD 0.54mm (spring)
- 100X/1.25/∞/0.17, WD 0.13mm (spring, oil)
» Micro-photography
