Head
Universal Infinity Corrected Optical System
Seidentopf Trinocular head, inclined at 45°
Interpupilary Distance adjustment range : 50-75mm
Diopter adjustment : ±5°
High Eye-Point WF PL 10X/22mm
CS-IB2500
CatScope CS-IB2500, a new generation of infinity color corrected optical system with extraordinary sturdy and durable ergonomic design presents you a sharp and bright micro-image:
» Wide-field high eye-point eyepieces
» LWD infinity plan achromatic objectives
» Koehler illumination with iris aperture diaphragm
» Eco-Illumination
» Upgradable for Fluorescence application

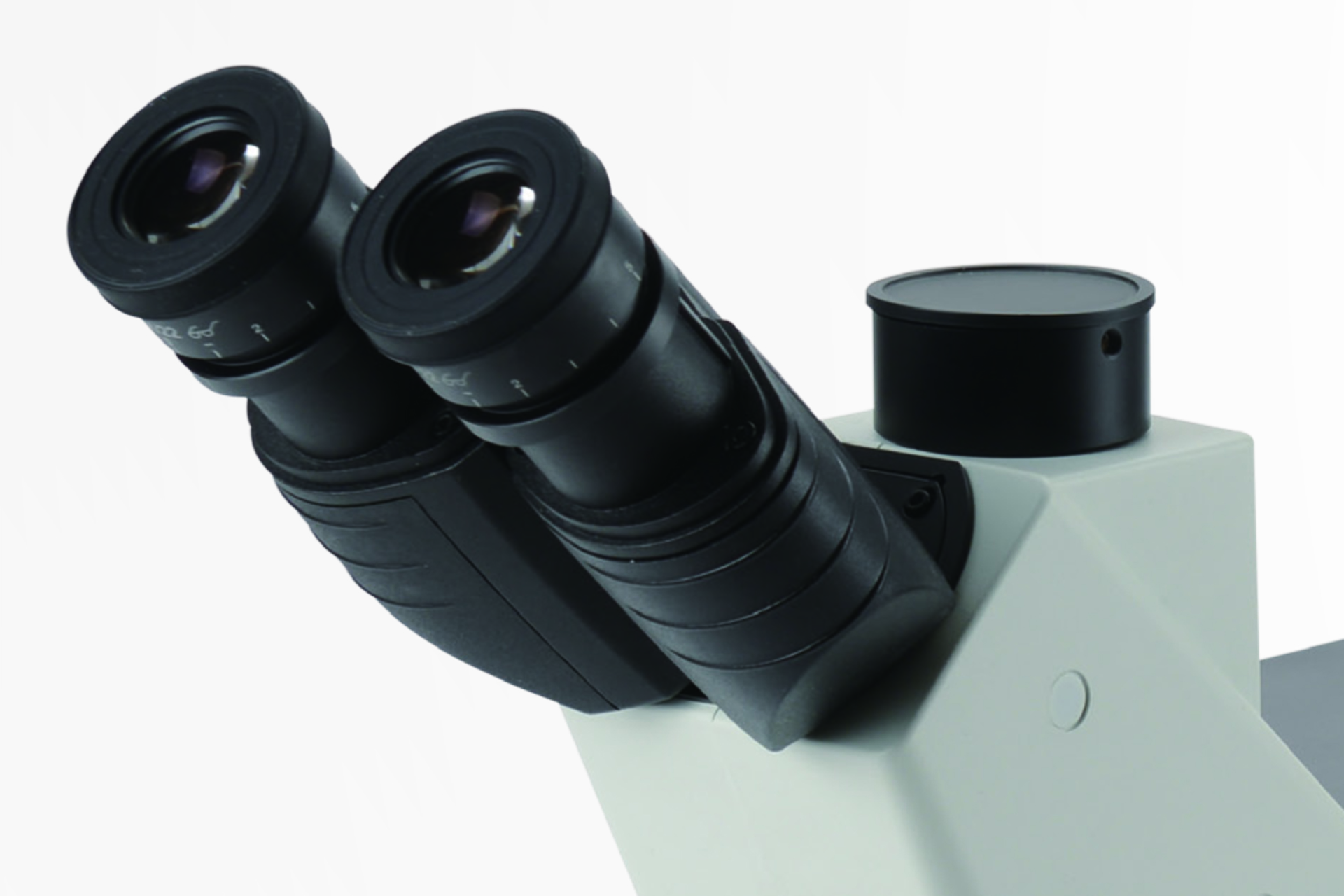

HEAD
Viewing head
The Siedentopf head of CS-IB2500, features compensation-free interpupillary-adjustment, as well as dioptric adjustment. The trinocular photo-port provides a stable platform for mounting an imaging-system without the need to remove an eyepiece. The photo-port works concurrently with both eyepieces, so there is no interruption to binocular viewing.
Ultra wide field plan eyepieces
The new-designed high eye-point extreme-wide-field eyepieces include 10X with plan field-correction, has a full bright field without chromatic circle. 22mm field of view makes it convenient and comfortable viewing.

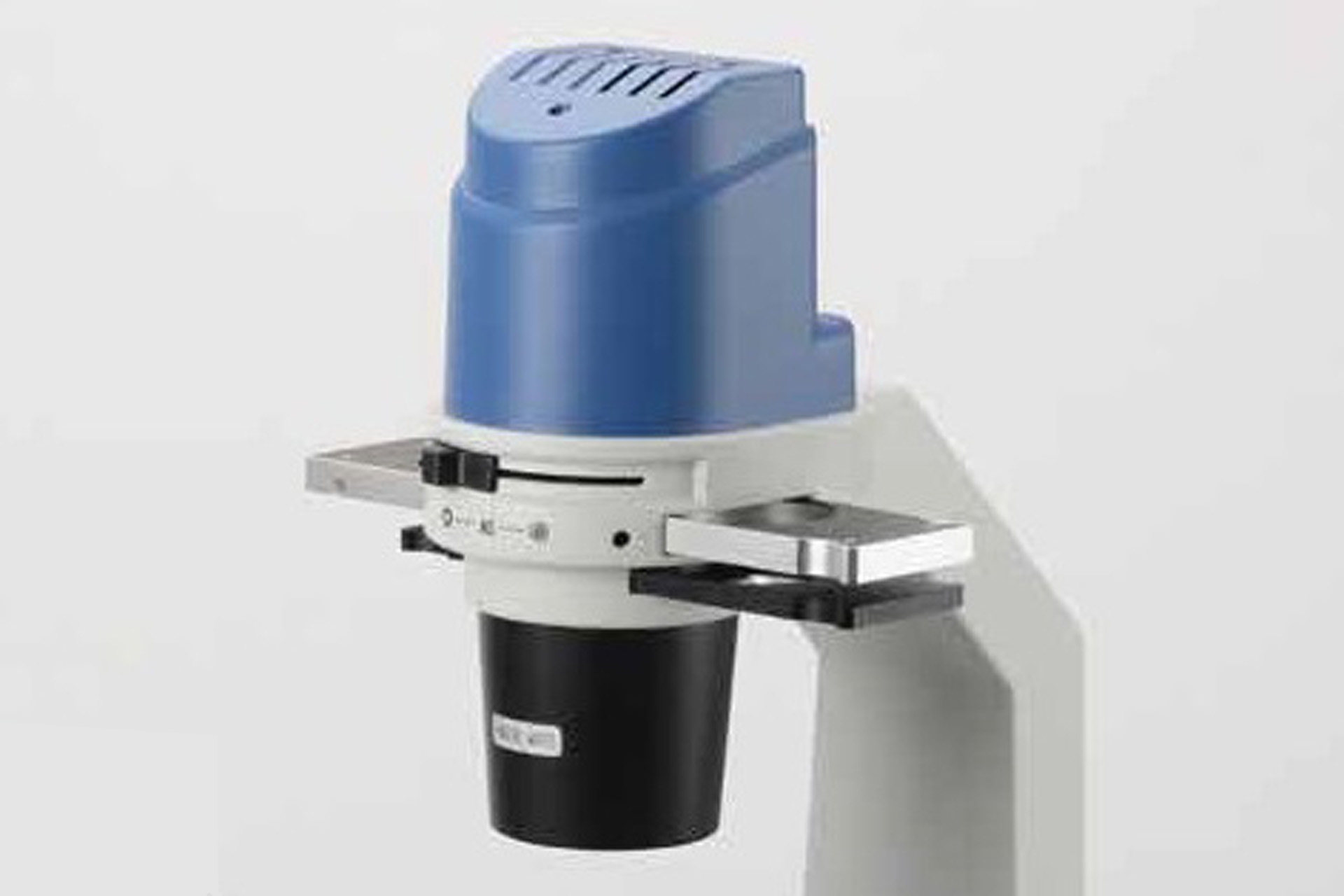

TRANSMISSION SYSTEM
Koehler illumination system with 5W LED Lamp. Adjustable condenser is with field & aperture diaphragm and with working distance of 72mm. Rotatable bracket allows the condenser to move out of the optical path.

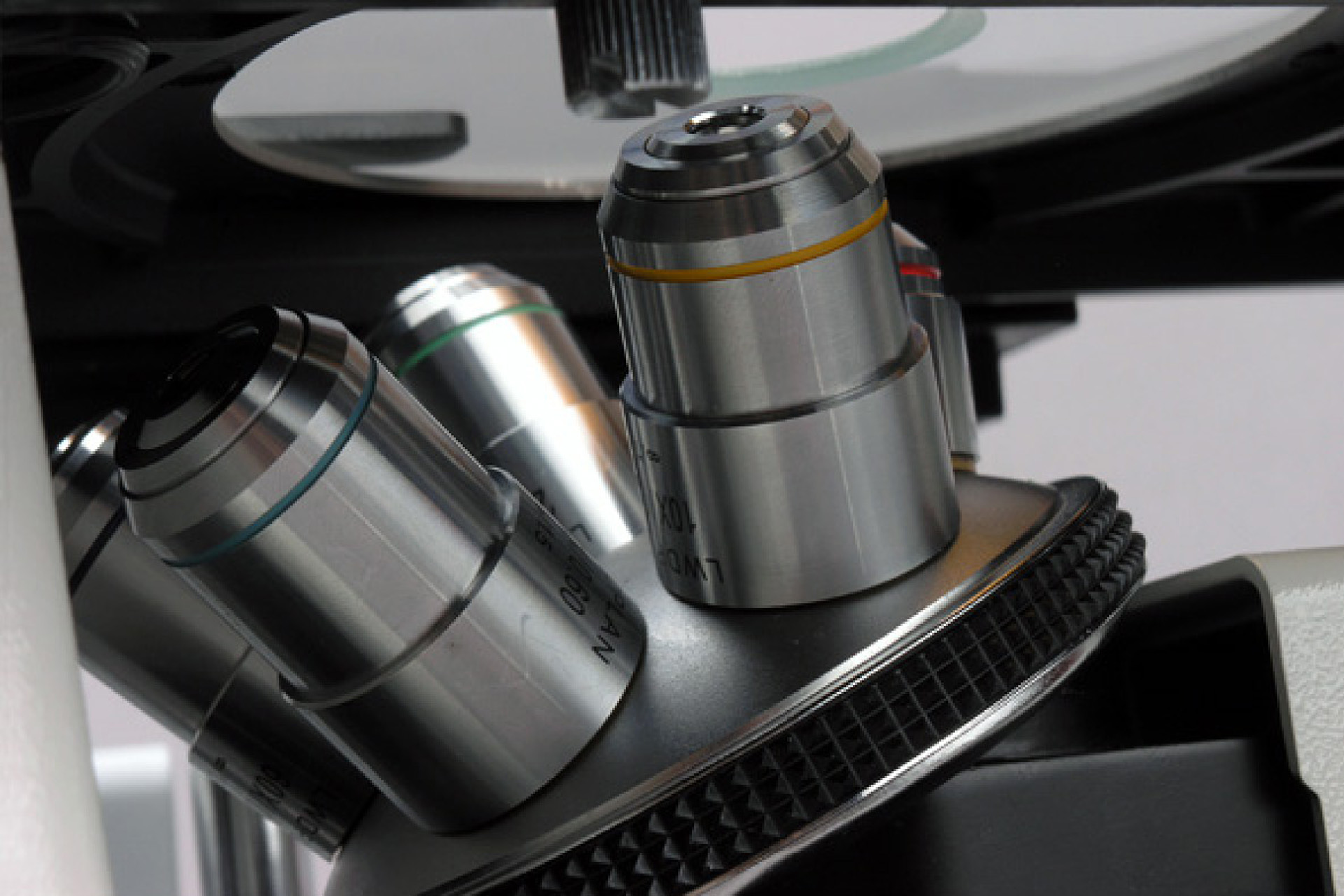

NOSEPIECE & OBJECTIVES
The infinity-corrected optical-system includes a five-lens (quintuple) turret nosepiece with a combination of LPLAN bright-field, and phase-contrast long-working-distance objective-lenses with plan field-correction and achromatic color-correction, designed for living—cells culture in laboratory, provides clear image with excellent contrast and also performs well under fluorescence observation.

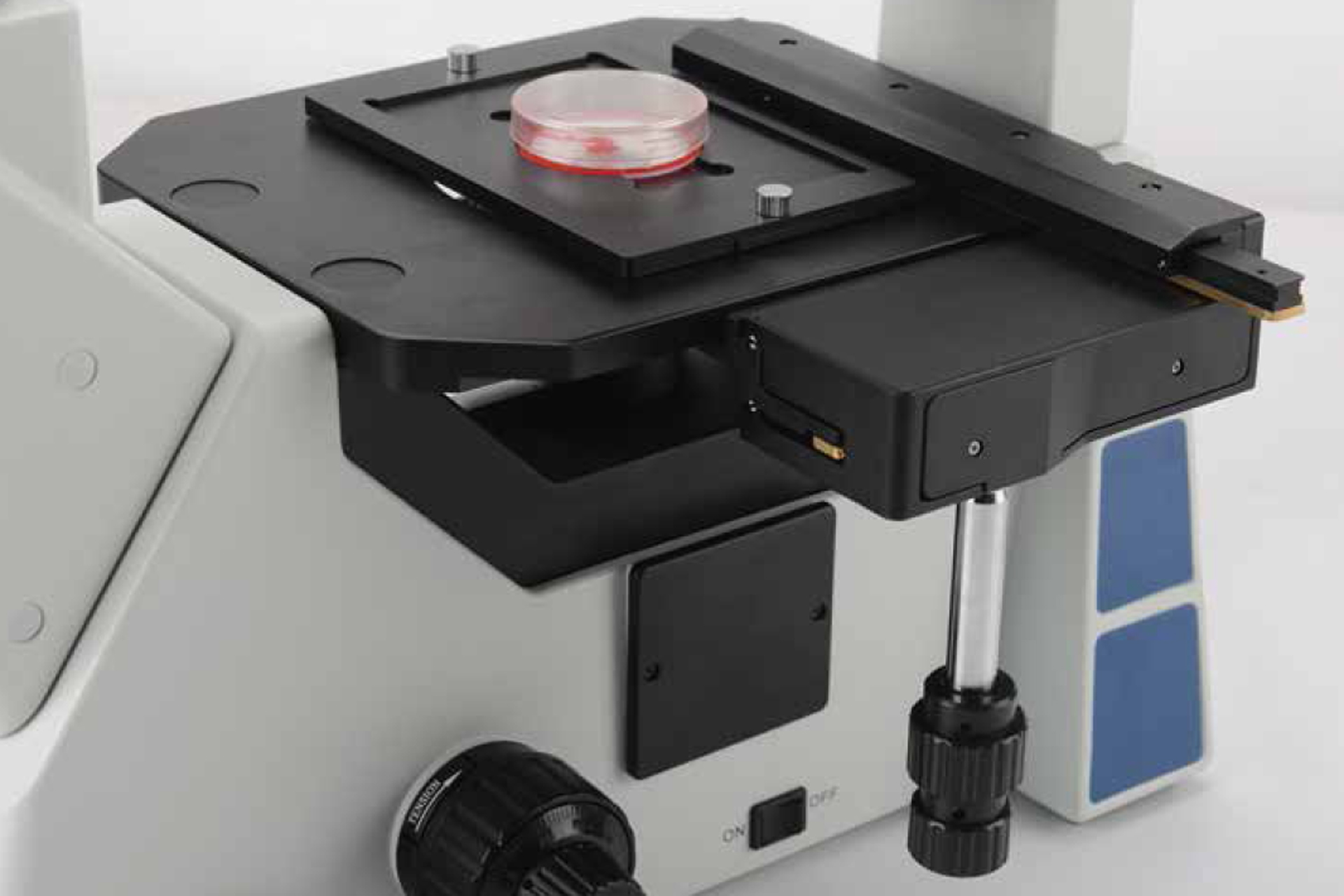

STAGE
The standard configuration is supplied with a fixed plain stage. The stage can be widened on both sides to accommodate large specimens with the optional paired auxiliary stage plates. A hard coating protects the stage from scratches and wear & tear.
Attachable Mechanical Stage
Moving range: 120x78mm.
It can clamp all types of standard cell culture plates. With the help of related accessories (holders), it can be used to move the dish, flask, slide and so on.

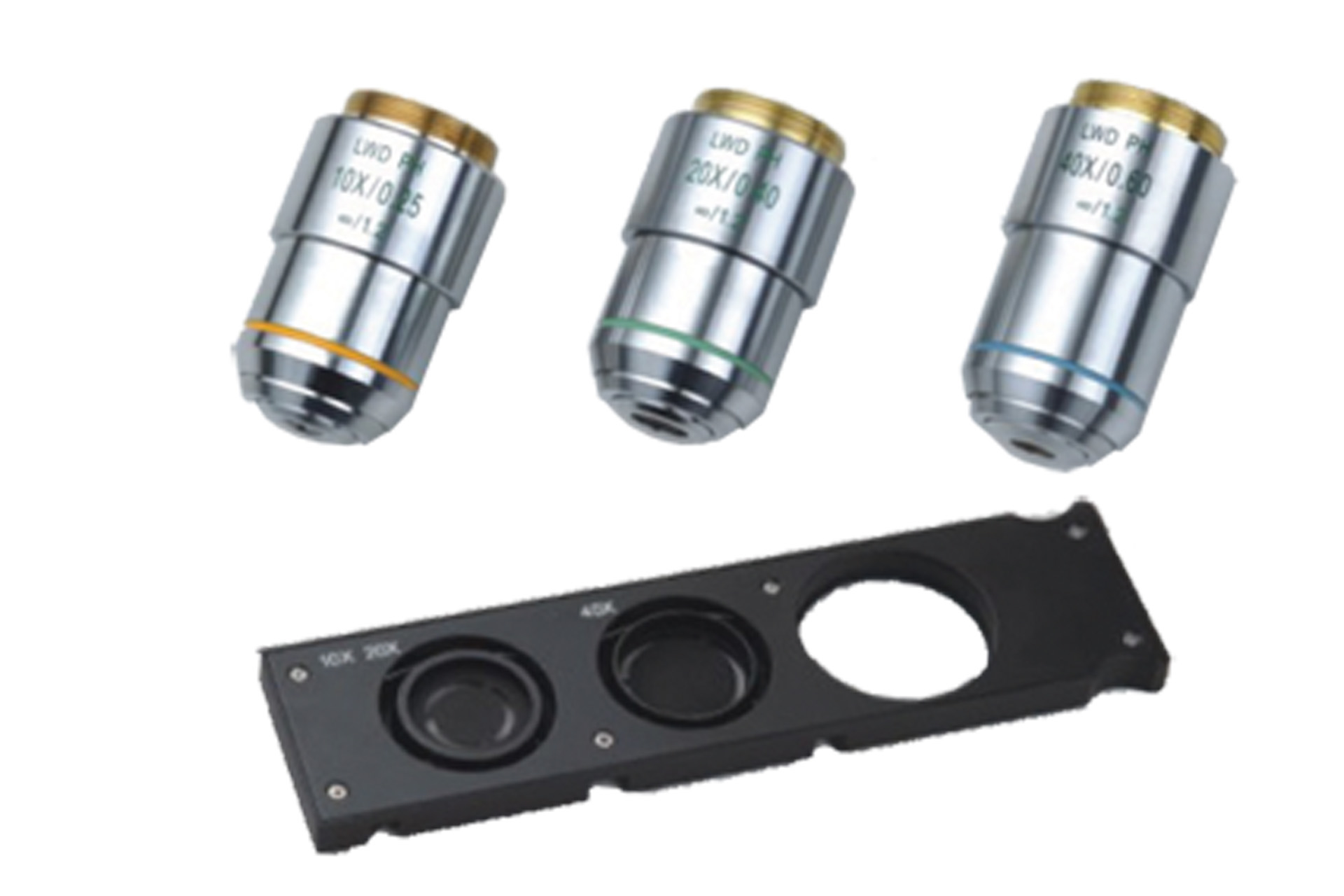

PHASE CONTRAST
In addition to the bright field observation, Phase Contrast observation can be realized using a slide-in annulus-board provides two centerable phase-contrast annuli, as well as an open setting which can be used with colored filters for band-isolation or color-correction with LPLAN PH series long working distance infinity phase contrast objectives. These objectives enhance image contrast and resolution.

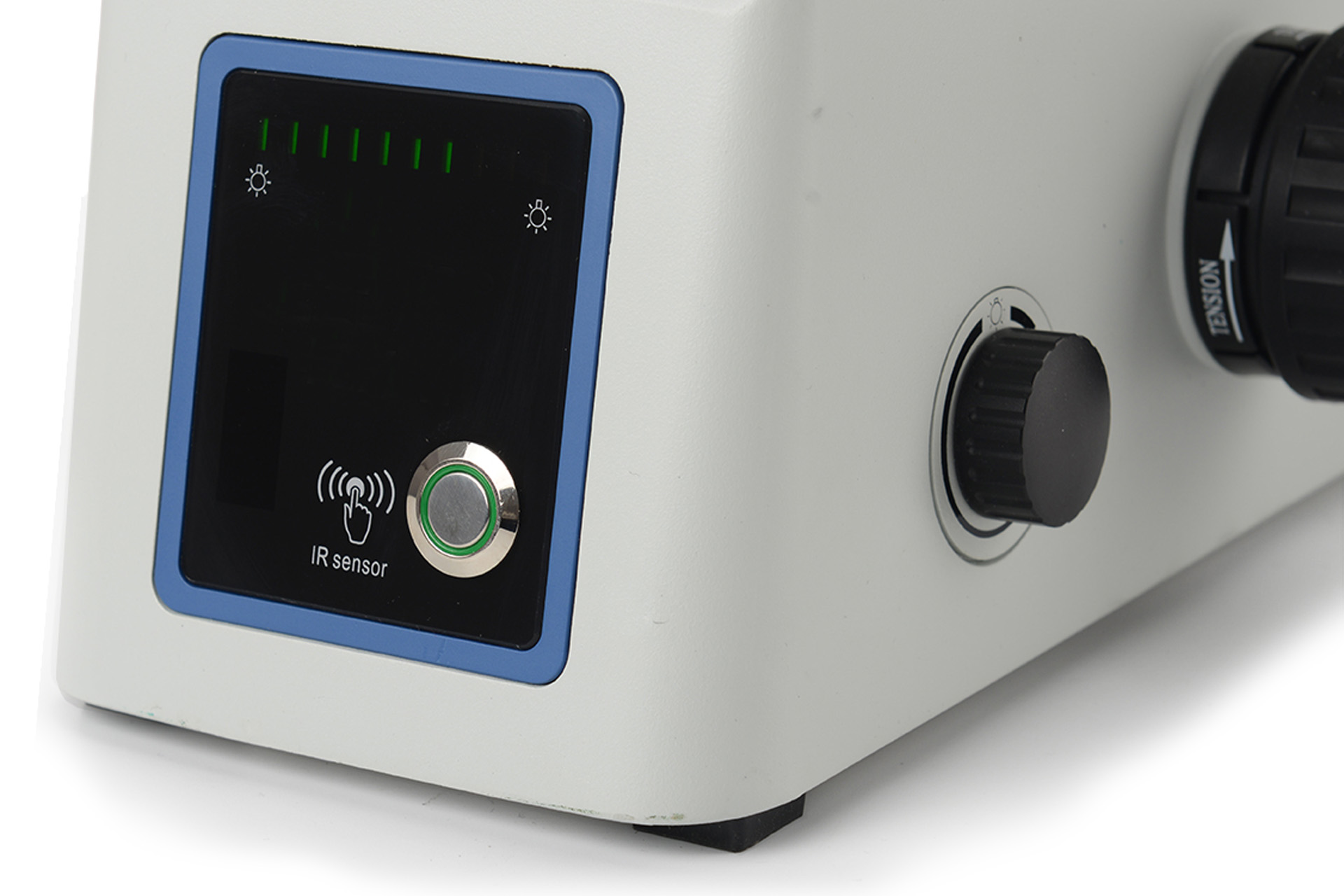

ECO ILLUMINATION
With ECO infrared function, microscope will be auto shutdown when the user leaves for a certain time, also can auto restart when the user returns.

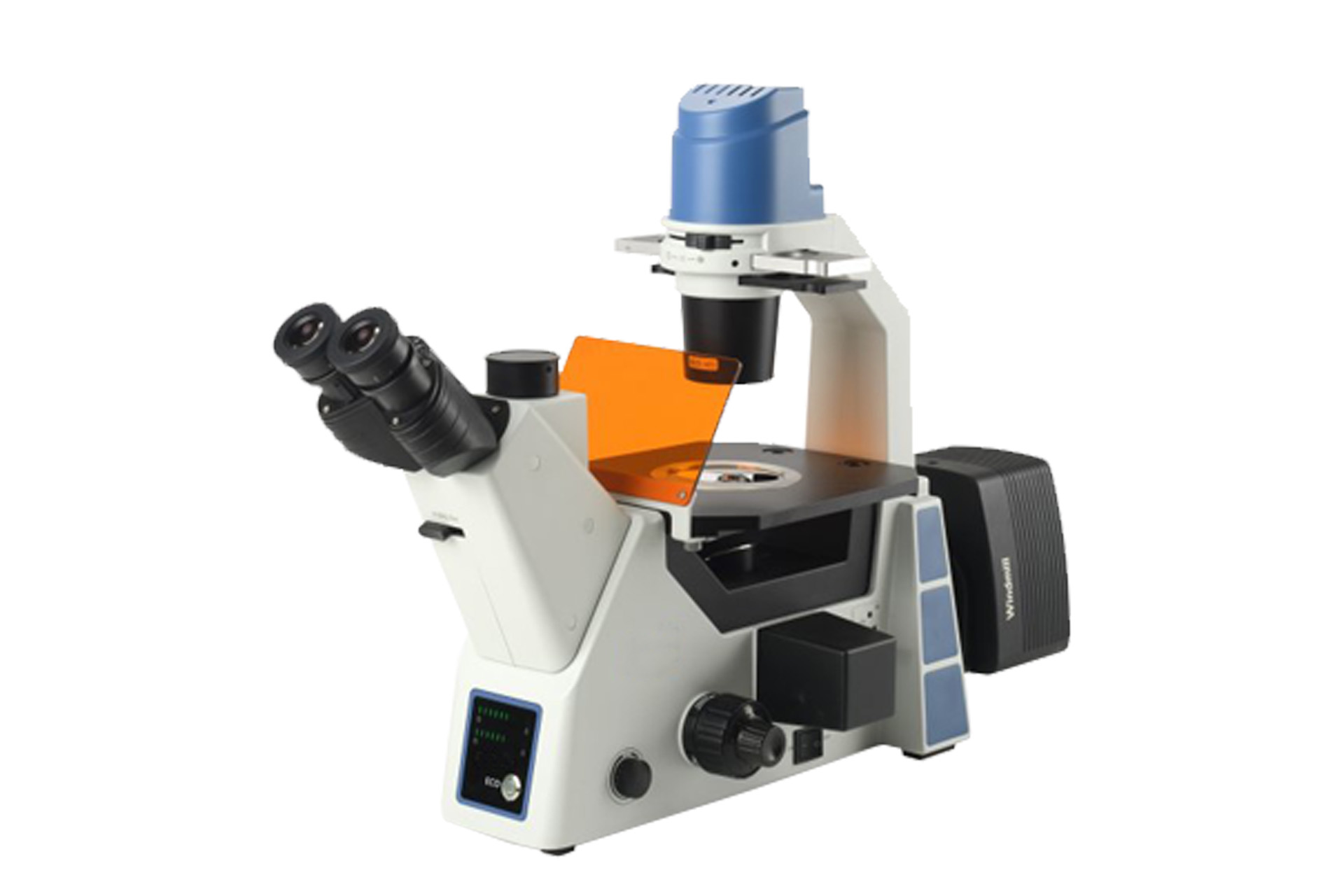

Upgradation For Fluorescence
CS-IB2500 is a modular microscope, ready to be upgraded for Fluorescence application, with LED Illumination, anytime with ease.
